Plug gauges yɛ nnwinnade a ɛho hia wɔ pɛpɛɛpɛyɛ mfiridwuma mu, a ɛma pɛpɛɛpɛ a ɛso bi nni ne ahotoso a wɔde hwɛ sɛnea ntokuru ne bore no kɛse te. Sɛ́ ɛyɛ nea wonya fi wɔn a wogye wɔn di a wɔde plug gauges ma sɛ wɔntɔn anaasɛ SNAP gauges a wɔwɔ din pa a wɔayɛ no sɛnea wɔpɛ no hɔ no, saa nnwinnade yi hwɛ hu sɛ nneɛma a wɔde yɛ no hyia abodwokyɛre a emu yɛ den, ahwehwɛde a ɛho hia wɔ nnwuma te sɛ kar, ahunmu, ne nneɛma a wɔyɛ mu. Plug gauge a ɛnyɛ den no som bo titiriw ma susuw afã horow a wɔde mfiri ayɛ no mu ntwemu, na ɛma wonya nea efi mu ba tẽẽ/ɛnyɛ huammɔdi a ɛma adwenem naayɛ fi hɔ na ɛma wotumi di nneɛma pa so yiye. Wɔn adansi a ɛyɛ den ne sɛnea wɔde toto nneɛma ho pɛpɛɛpɛ no ma wɔyɛ nea eye ma wɔde di dwuma kɛse, na ɛtew nneɛma a ɛho hia so bere a ɛkɔ so yɛ pɛpɛɛpɛ bere a bere kɔ so no. Bio nso, plug gauges streamline inspection processes, na ɛma wɔn a wɔyɛ no tumi yɛ nneɛma a wɔyɛ no ntɛmntɛm a ɛnyɛ pɛpɛɛpɛ. Sɛ wɔde ahotoso, ahoɔden a ɛtra hɔ kyɛ, ne sɛnea ɛnyɛ den sɛ wɔde bedi dwuma bom a, plug gauges yɛ ade a ɛsɛ sɛ wonya ma adwuma biara a wɔn botae ne sɛ wɔbɛma gyinapɛn ahorow a ɛyɛ den a ɛyɛ papa wɔ nneɛma a wɔyɛ mu no akɔ so.
Nneɛma ahorow a wɔde kyerɛ plug gauge .
Plug gauges a wɔtɔn no ba ahorow ahorow, a emu biara yɛ nea ɛfata susudua ahiade pɔtee bi, na ɛhwɛ hu sɛ ɛyɛ pɛpɛɛpɛ wɔ mfiridwuma mu nneɛma ahorow mu. Nneɛma a ɛtaa ba no bi ne plug gauges a ɛnyɛ den, taper plug gauges, thread plug gauges, ne go/no-go plug gauges, a emu biara di atirimpɔw ahorow a ɛda nsow wɔ quality control ne dimensional inspection mu.
Wɔde plug gauges a ɛnyɛ den di dwuma kɛse de susuw ntokuru a ɛyɛ mmerɛw na ɛyɛ kurukuruwa no mu ntwemu. Wɔyɛ tẽẽ, wɔde pass anaasɛ huammɔdi a efi mu ba ma, na ɛhwɛ hu sɛ nneɛma a ɛwom no di abodwokyɛre a wɔhwehwɛ no so. Saa gauges yi ye ma general-purpose applications, titiriw wɔ kar ne nneɛma a wɔyɛ mu.

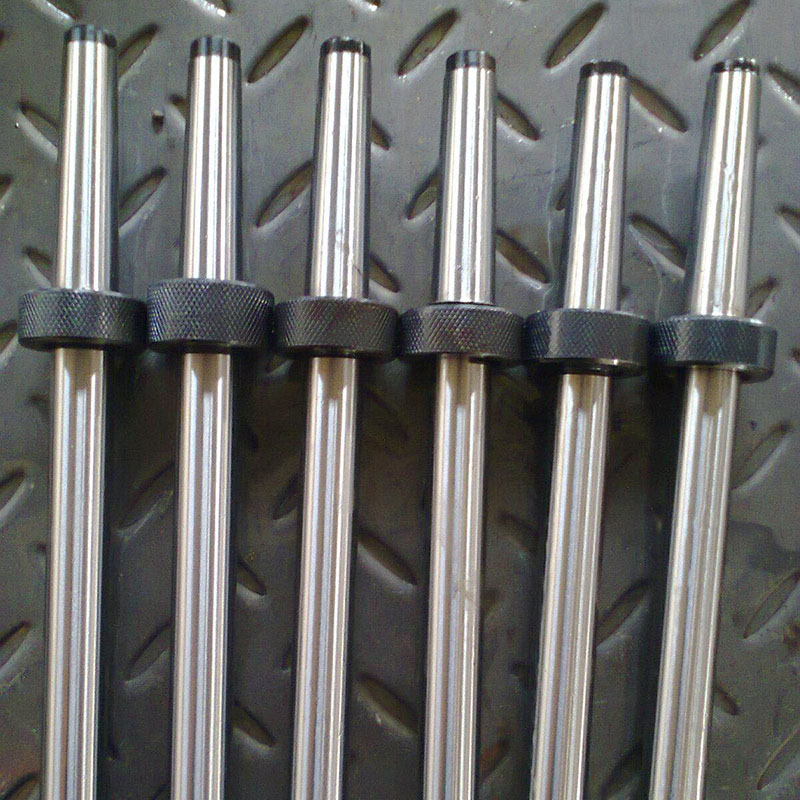

Wɔayɛ taper plug gauges no pɔtee sɛnea ɛbɛyɛ a wobetumi asusuw ntokuru a ɛyɛ teateaa, a wɔtaa hu wɔ applications a ɛhwehwɛ sɛ wɔde pɛpɛɛpɛ hyia anaasɛ wɔde hyɛ mu no mu. Saa gauges yi hwɛ sɛ taper angle ne dimensions no ne design specifications hyia, a ɛho hia wɔ mmeae te sɛ pipe fitting ne fluid mechanics.

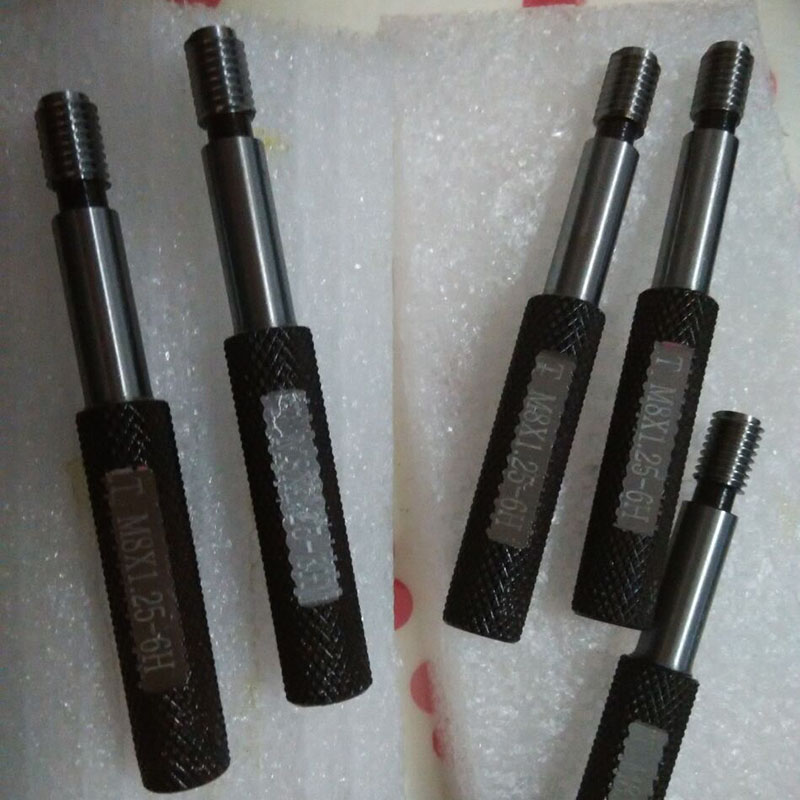

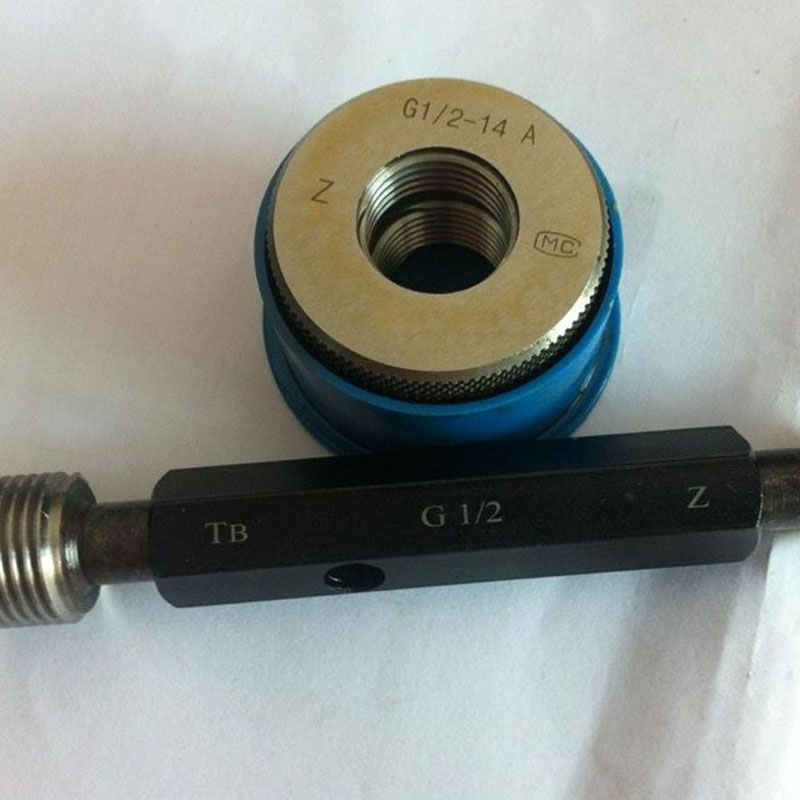

Thread plug gauges ho hia na ama wɔahwɛ sɛnea nhama a ɛwɔ mu no yɛ pɛpɛɛpɛ wɔ nnuaba, bushings, ne nneɛma a ɛte saa mu. Wɔba afã abien: "Go" fã no di adanse sɛ asaawa no wɔ maximum tolerance mu, bere a "no-go" fã no hwɛ hu sɛ ɛntra tolerance a ɛba fam koraa no.

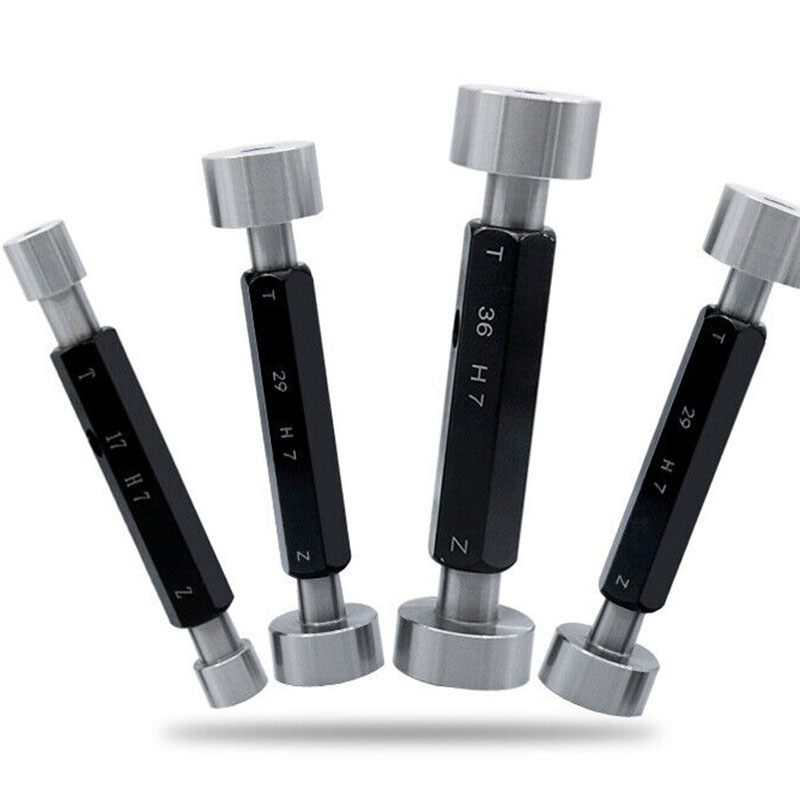

Go/no-go plug gauges yɛ nnwinnade a ɛyɛ adwuma pii a ɛka gauge abien bom wɔ biako mu. "Go" end checks sɛ tokuru no hyia minimum acceptable dimension, na "no-go" awiei no hwɛ hu sɛ ɛntra nea ɛsen biara no. Saa dwumadie mmienu yi ma nhwehwɛmu yɛ mmerɛ na ɛma adwumayɛ tu mpɔn.
Saa plug gauges ahorow yi, a wobetumi anya afi Stonen Snap gauge a wɔyɛ no titiriw no mu, ma wotumi susuw nneɛma pɛpɛɛpɛ na wotumi de ho to so wɔ nnwuma ahorow mu, na ɛhwɛ ma ɛyɛ papa bere nyinaa na wodi nsɛm a wɔakyerɛkyerɛ mu no so. Plug gauge a ɛwɔ nifa no a wobɛpaw no gyina application, nneɛma, ne level a ɛyɛ pɛpɛɛpɛ a ɛho hia no so.
Taper gauge dwumadie .
Taper gauge yɛ adwinnade a ɛyɛ pɛpɛɛpɛ a wɔde susuw mmeae a ɛyɛ teateaa, nsonsonoe, anaa bores a ɛwɔ mfiri no mu no nsusuwii. Ɛyɛ nea ɛsom bo titiriw esiane tumi a ɛwɔ sɛ ɛde akenkan a ɛyɛ pɛpɛɛpɛ ma wɔ tebea horow a ebia gauges anaa calipers a wɔtaa de di dwuma no di apere nti. Dwumadi titiriw a ɛwɔ taper gauge mu ne sɛ wɔbɛhwɛ sɛnea taper no trɛw anaa ne kɛse te, a mpɛn pii no efi n’afã horow a ɛyɛ teateaa kosi nea ɛtrɛw. Eyi ho hia kɛse wɔ nnwuma te sɛ mfiridwuma, kar, ne nneɛma a wɔyɛ mu, baabi a ɛho hia sɛ wosusuw taper a ɛyɛ pɛpɛɛpɛ ho na ama nneɛma a ɛwom no ayɛ biako a biribiara nhaw no anaasɛ ɛyɛ adwuma yiye.
Taper gauges ho wɔ mfaso titiriw wɔ sɛnea wohu sɛnea nsu a ɛwɔ nsu no mu no mu dɔ anaasɛ clearance a ɛwɔ gaps nketewa mu no mu. Sɛ nhwɛso no, wɔ nhyiam adwuma anaa nsiesie mu no, wɔboa ma ɛyɛ nokware sɛ ɔfã bi a ɛyɛ teateaa, te sɛ bore anaa spindle a ɛte sɛ cone, ne nea ɛne no hyia no hyia, na ɛtew asiane a ɛwɔ hɔ sɛ nneɛma a ɛne ne ho nhyia anaasɛ adwumayɛ mu huammɔdi no so. Gauge no blade a ɛyɛ teateaa anaa ne nsusuwii no ma ɛkɔ baabi a wɔasusuw no yiye, na ɛma wonya ɔkwan a ɛyɛ ntɛm na wotumi de ho to so a wɔfa so hwɛ sɛnea wobetumi agyina ano.
Wɔ wɔn susudua a mfaso wɔ so a wɔde di dwuma akyi no, taper gauges ho hia ma akwan a wɔfa so hwɛ nneɛma so yiye. Wɔhwɛ hu sɛ nneɛma a wɔyɛ no ne taper a ɛyɛ pɛpɛɛpɛ no yɛ pɛpɛɛpɛ, na ɛboa ma nnwuma ahorow kɔ so yɛ gyinapɛn a ɛkorɔn. Saa gauge ahorow yi nso yɛ nea ɛyɛ mmerɛw sɛ wɔde bedi dwuma, na ɛhwehwɛ ntetee kakraa bi, na wobetumi de nneɛma a ɛtra hɔ kyɛ te sɛ dade a ɛnyɛ den ayɛ na atumi agyina mfiridwuma mu dwuma a wɔde di dwuma kɛse ano. Awiei koraa no, taper gauge no dwumadi kɔ akyiri sen susudua a ɛnyɛ den; Ɛdi dwuma titiriw wɔ adwumayɛ, ahobammɔ, ne nkwa tenten a ɛwɔ mfiri a wɔde yɛ nneɛma mu no mu yiye.
Dɛn ne plug gauge a wɔde di dwuma?
Wɔ mfiridwuma mu nneɛma a wɔyɛ ne nea ɛyɛ papa a wɔhwɛ so no ahemman no mu no, pɛpɛɛpɛyɛ ho hia sen biara. Nnwinnade a ɛho hia a wɔde di dwuma de hwɛ hu sɛ ɛyɛ pɛpɛɛpɛ wɔ nsusuwii mu no mu biako ne plug gauge. Saa adwinnade titiriw a wɔde susuw nneɛma yi yɛ adwuma titiriw bi wɔ ntokuru ne mmue a ɛwɔ nneɛma ahorow mu a wɔbɛhwehwɛ mu no mu.
Wɔde plug gauge di dwuma titiriw de hwɛ ntokuru no mu nsusuwii de si so dua sɛ ebia ɛne abodwokyɛre a wɔakyerɛ no hyia anaa. Mpɛn pii no ɛba ahorow abien: Go Gauge ne No-GO gauge. Wɔayɛ Go Gauge no sɛnea ɛbɛyɛ a ɛbɛfata tokuru no mu, na ɛkyerɛ sɛ tokuru no kɛse yɛ nea wogye tom. Nea ɛne no bɔ abira no, wɔakyerɛ sɛ no-go gauge no rentumi nkɔ tokuru no mu; Sɛ ɛba saa a, ɛkyerɛ sɛ tokuru no fi abodwokyɛre mu. Saa dwumadie mmienu yi ma quality control inspectors tumi hunu ntɛm sɛ ebia afã ahodoɔ no di engineering specifications so anaa.
Wɔde nneɛma a ɛyɛ papa na ɛyɛ den na ɛyɛ plug gauges no na ama wɔahwɛ ahu sɛ ɛkyɛ na ɛyɛ pɛpɛɛpɛ bere a bere kɔ so no. Wɔde mfiri ayɛ na wɔayɛ no sɛnea ɛte, na ɛma kwan ma nsakrae ketewaa bi ba susudua mu, a ɛho hia kɛse wɔ nhyiam a ɛkɔ so wɔ nneɛma a wɔyɛ mu no mu. Nnwuma a wɔtaa de plug gauges di dwuma no bi ne ahunmu, kar, ne mfiri a wɔyɛ, baabi a susuw a wɔyɛ no pɛpɛɛpɛ betumi anya nneɛma a wɔyɛ ne ahobammɔ so nkɛntɛnso kɛse.
Sɛ yɛbɛbɔ no mua a, plug gauge no yɛ adwinnade a ɛho nhia a wɔde hwɛ ma nneɛma yɛ papa wɔ adwumayɛbea a wɔyɛ nneɛma no mu. Ɛdenam emu nsusuwii a wɔde susuw nneɛma a ɛyɛ pɛpɛɛpɛ so no, edi dwuma titiriw wɔ hwɛ a ɛhwɛ hu sɛ nneɛma a ɛwɔ mu no bɛbom sɛnea wɔayɛ no mu. Sɛ́ ɛyɛ beae kɛse a wɔyɛ nneɛma anaasɛ adwumayɛbea ketewaa bi mu no, ntease ne sɛnea wɔde plug gauges di dwuma yiye no betumi ama wɔanya nkɔso kɛse wɔ nneɛma a wɔyɛ no yiye ne adwumayɛ mu mmɔdenbɔ mu. Wɔ obiara a ɔde ne ho hyɛ nneɛma a wɔyɛ mu fam no, plug gauge a wɔde di dwuma yiye no yɛ ahokokwaw titiriw a ɛma wotumi di gyinapɛn a ɛkorɔn sen biara a ɛma wotumi yɛ ade yiye no so.
Nsonsonoe bɛn na ɛwɔ plug gauge ne pin gauge ntam?
Plug gauges ne pin gauges nyinaa yɛ susudua nnwinnade a ɛyɛ pɛpɛɛpɛ, nanso edi atirimpɔw ahorow a ɛda nsow ho dwuma na ɛsono sɛnea wɔyɛ, sɛnea wɔde di dwuma, ne sɛnea ɛyɛ adwuma. Nsonsonoe yi ho ntease ho hia na ama wɔapaw adwinnade a ɛfata ama nhwehwɛmu adwuma pɔtee bi.
Plug gauge .:
Plug gauge yɛ adwinnade a ɛyɛ kurukuruwa a wɔayɛ sɛ wɔde bɛhwɛ ntokuru, bores, anaa slots mu nsusuwii. Mpɛn pii no wɔde di dwuma ma GO/NO-GO susudua, plug gauge di adanse sɛ ebia ɔfã bi hyia tolerances a wɔakyerɛ denam kyerɛ a ɛkyerɛ sɛ ɛfata wɔ dimensional range a wogye tom no mu. Plug gauges wɔ hɔ ahorow ahorow, te sɛ plain plug gauges, taper plug gauges, ne threaded plug gauges, a emu biara yɛ nea wɔayɛ ama application pɔtee bi. Wɔyɛ den, ɛnyɛ den sɛ wɔde bedi dwuma, na eye ma nnwuma a ɛyɛ pɛpɛɛpɛ te sɛ kar anaa ahunmu a wɔyɛ.
Pin gauge .:

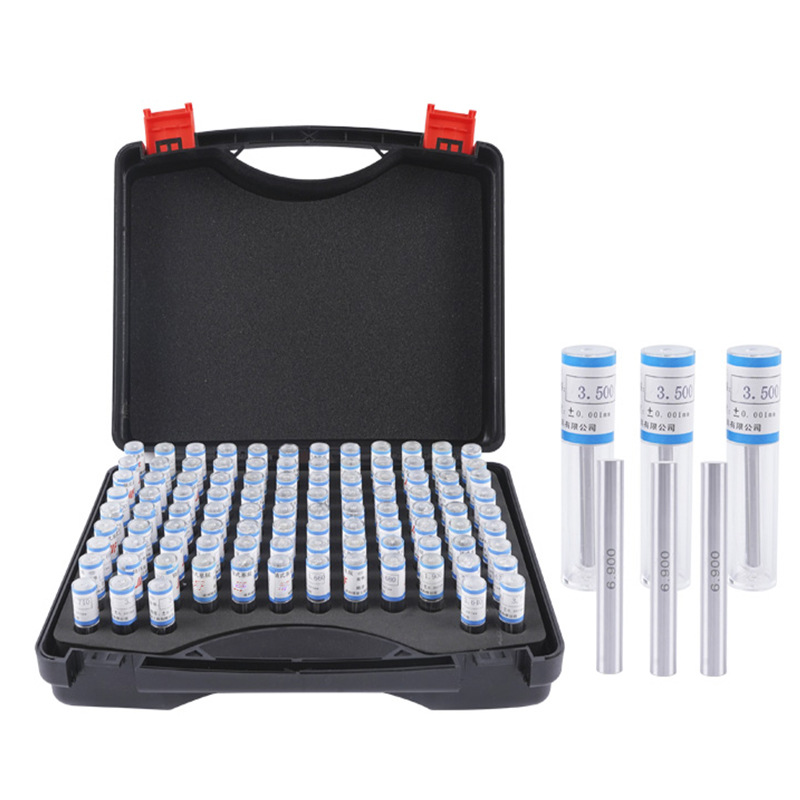

Nanso pin gauges de, ɛyɛ pin nketewa a ɛyɛ kurukuruwa a ɛba wɔ sets mu na wɔde di dwuma ma nsusuwii a ɛyɛ pɛpɛɛpɛ, a ntokuru no kɛse ne ne kurukuruwa ka ho. Nea ɛnte sɛ plug gauges no, ɛnyɛ nea wɔayɛ pin gauges titiriw sɛ wɔmfa nyɛ nhwehwɛmu wɔ GO/NO-GO sɔhwɛ mu. Mmom no, ɛma wonya susudua pɛpɛɛpɛ denam pin akɛse ahorow a wɔde hyɛ tokuru bi mu kosi sɛ ebetumi ayɛ yiye so. Wɔtaa de pin gauges di dwuma wɔ adwinnade ne die sotɔɔ ahorow, calibration labs, ne nnwuma a ultra-precise susudua ho hia kɛse mu.
Nsonsonoe atitiriw .:
Nsonsonoe titiriw no da sɛnea wɔde di dwuma no mu. Plug gauges ma binary pass/fail result, ɛma nhwehwɛmu nhyehyɛe no yɛ mmerɛw, bere a pin gauges no ma wonya dimensional data a ɛkɔ akyiri, a ɛma wotumi susuw nneɛma a ɛwɔ mu no pɛpɛɛpɛ. Plug gauges taa yɛ den na ɛfata ma nhwehwɛmu a wɔyɛ no mpɛn pii, bere a pin gauges yɛ mmerɛw na eye ma nhwehwɛmu a ɛkɔ akyiri. Nnwinnade abien no nyinaa ho hia wɔ sɛnea wɔhwɛ nneɛma yiye so nanso wogyina sɛnea wɔyɛ no pɛpɛɛpɛ ne sɛnea wɔhwehwɛ no so na ɛpaw.
