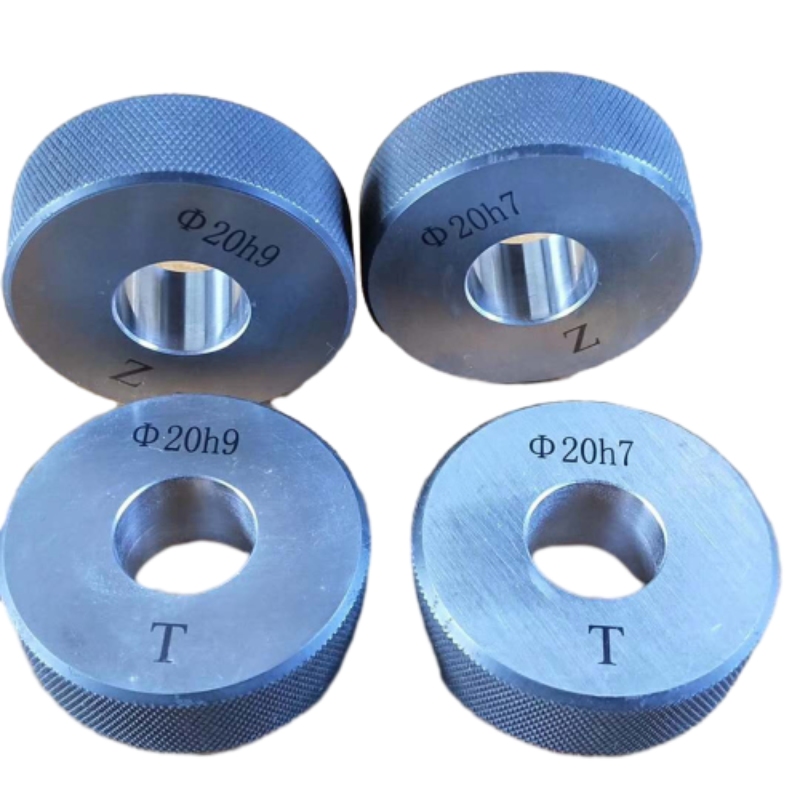

Smooth ring gauge: Ɛyɛ . Ɔkwan a wɔfa so yɛ gauge . Wɔde susuw akyi ntwemu nsusuwii a ɛwɔ adwuma no mu, a wɔakyekyɛ mu ayɛ no T awiei ne z awiei. Sɛ wɔde di dwuma a, T awiei no gyina hɔ ma anohyeto a ɛwɔ soro no nsusuwii a ɛwɔ adwuma no akyi ntwemu no mu na ɛsɛ sɛ ɛtwam; Z awiei no gyina hɔ ma anohyeto a ɛwɔ ase no nsusuwii a ɛwɔ adwuma no akyi ntwemu no mu na entumi ntwam.

Yɛn adwumakuw no yɛ gauge series: Thread gauge (metric, Amerika, Engiresi, trapezoidal), ne . Thread plug gauge ., Asaawa ring gauge ., plug gauge a ɛyɛ mmerɛw, ring gauge a ɛyɛ mmerɛw trapezoidal), plug gauge, ring gauge a ɛyɛ mmerɛw, card gauge, keyway plug gauge, mohs gauge, 7:24 taper gauge, metric taper gauge, sinusoidal gauge, inspection rods (mohs, 7: Coaxial checks, ne nnwinnade afoforo a ɛnyɛ nea wɔahyɛ da ayɛ.

Ring gauge a wɔde di dwuma .

A ring gauge yɛ . adwinnade a wɔde susuw nneɛma pɛpɛɛpɛ . Wɔde di dwuma titiriw wɔ mfiri ne su pa sohwɛ mu de susuw nneɛma a ɛyɛ kurukuruwa te sɛ nnua anaa bearing ahorow akyi nsusuwii. Wɔayɛ no sɛnea ɛbɛyɛ a ɛbɛhwɛ sɛnea saa nneɛma yi kɛse te ne sɛnea ɛyɛ kurukuruwa, na ɛhwɛ hu sɛ ebedu abodwokyɛre ho ahwehwɛde pɔtee bi ho. Wɔtaa de ring gauges di dwuma wɔ nnwuma te sɛ kar, ahunmu, ne nneɛma a wɔyɛ mu, baabi a sɛ wokura mu pɛpɛɛpɛ a, ɛho hia kɛse.

Ring gauges wɔ ahorow abien titiriw: Go/No-GO gauges ne set-ring gauges. GO/NO-GO type no yɛ nea wɔde yɛ mfitiase tolerance nhwehwɛmu. Ɛyɛ nkaa mmienu: "Go" nkaa ne "no-go" nkaa. Ɛsɛ sɛ "Go" ring no fata ɔfã no, a ɛkyerɛ sɛ component no wɔ size range a wɔpɛ no mu, bere a "no-go" ring no ntumi nkɔ mu, a ɛkyerɛ sɛ ɔfã no boro nsusuwii a wɔakyerɛ no so.

Wɔde set-ring gauge no di dwuma ma susudua ne calibration a ɛkɔ akyiri. Saa su yi yɛ ring a wɔayɛ no pɛpɛɛpɛ a ɛyɛ gyinapɛn a wɔde toto ade a wɔresusuw no ho. Ɛboa ma ɛyɛ nokware sɛ nneɛma a ɛka ho no ma ne kɛse kɔ so daa wɔ nneɛma a wɔyɛ no nyinaa mu.

Wɔde nneɛma a ntrɛwmu dodow a ɛba fam te sɛ dade anaa carbide na ɛyɛ ring gauges de hwɛ hu sɛ ɛbɛkɔ so ayɛ pɛpɛɛpɛ wɔ ɔhyew tebea horow a egu ahorow mpo mu. Sɛ wode ring gauge redi dwuma a, ɛho hia sɛ wode ahwɛyiye di ho dwuma na amma ansɛe, efisɛ sintɔ ketewaa bi mpo betumi aka susudua no pɛpɛɛpɛ.

Sɛ yɛbɛbɔ no mua a, ring gauges ho hia na ama wɔatumi asusuw afã horow a ɛyɛ kurukuruwa a ɛyɛ pɛpɛɛpɛ wɔ nnwuma ahorow mu. Wɔn a wɔde di dwuma no boa ma wosiw sintɔ ahorow ano na ɛhwɛ hu sɛ nneɛma a ɛwɔ mu no fata na ɛyɛ adwuma sɛnea wɔahyɛ da ayɛ no, na ɛboa ma mfiri nhyehyɛe no nyinaa yɛ papa na ɛyɛ adwuma.

Mfaso bɛn na ɛwɔ ring gauge so?

Wɔ nnwuma a wɔyɛ ne mfiridwuma mu no, sɛ wɔhwɛ hu sɛ wɔsusuw nneɛma pɛpɛɛpɛ ma nneɛma a ɛwom no yɛ papa na ɛyɛ adwuma yiye. Adwinnade biako a ɛho hia a edi dwuma titiriw wɔ susudua a ɛyɛ pɛpɛɛpɛ mu ne ring gauge. Saa adwinnade titiriw a wɔde susuw nneɛma yi ma mfaso pii a ɛma adwumayɛ ne nneɛma a ɛma wotumi hu nneɛma yiye no yɛ kɛse.

Nea edi kan koraa no, mfaso titiriw a ɛwɔ ring gauge so ne tumi a etumi de susuw nneɛma a ɛyɛ pɛpɛɛpɛ kɛse ma afã horow a ɛyɛ kurukuruwa no. Sɛnea wɔayɛ no ma wɔn a wɔde di dwuma no tumi hwɛ sɛnea adwuma bi kɛse te. Wɔyɛ ring gauges ma ɛyɛ den sɛ wobetumi agyina ano, na ɛma ɛyɛ nea eye ma nneɛma a ɛyɛ papa wɔ mmeae a ɛyɛ den. Saa pɛpɛɛpɛyɛ yi boa ma wɔhwɛ hu sɛ afã horow no hyiam a biribiara nhaw wɔn, na ɛtew nsɛm a ebetumi aba sɛ ɛbɛba wɔ nhyiam ase no so.

Mfaso foforo a ɛda adi wɔ ring gauge no so ne sɛnea ɛyɛ mmerɛw sɛ wɔde bedi dwuma no. Nea ɛnte sɛ nnwinnade a ɛyɛ den kɛse a wɔde susuw nneɛma no, ring gauges de ‘kɔ/nkɔ’ kwan a ɛyɛ tẽẽ a wɔfa so hwɛ mu no kyerɛ. Nsusuwii no yɛ nkaa abien – go ring a ɛsɛ sɛ ɛfata ɔfã no ne no-go ring a ɛnsɛ sɛ ɛyɛ. Saa binary kwan yi ma kwan ma wɔyɛ nhwehwɛmu ntɛmntɛm, na ɛma adwumayɛfo tumi hu afã horow a ɛnyɛ nea ɛne ne ho nhyia no ntɛmntɛm a enhia sɛ wɔyɛ susudua nhyehyɛe a ɛyɛ nwonwa.

Bio nso, ring gauges no yɛ nea ɛtra hɔ kyɛ yiye na ebetumi agyina dwuma a wɔde di kɛse ano, na ɛma nkwa tenten ba na ɛho ka so tew bere tenten. Wɔtaa de nneɛma a ɛyɛ den a ɛko tia ɔporɔw na ɛyɛ, na ɛma ɛfata ma da biara da nhwehwɛmu a wɔyɛ no mpɛn pii wɔ mmeae ahorow a wɔyɛ no.

Nea etwa to no, ring gauge a wode bedi dwuma wɔ wo quality control nhyehyɛe no mu no betumi ama adwumayɛ ne ahotoso a ɛwɔ nneɛma a wɔyɛ mu no nyinaa ayɛ kɛse kɛse. Hwɛ a wɔbɛhwɛ sɛ biribiara a wɔayɛ no hyia nsɛm a wɔhwehwɛ no nyɛ sɛ ɛma nneɛma no yɛ papa nko na mmom ɛma adetɔfo nya abotɔyam ne ahotoso nso.

Sɛ yɛde rewie a, mfaso a ɛwɔ ring gauge a wɔde di dwuma so no yɛ nea ɛwɔ afã horow pii, na ɛka pɛpɛɛpɛ, ɛyɛ mmerɛw sɛ wɔde bedi dwuma, ɛyɛ den sɛ ɛbɛtra hɔ akyɛ, na ɛyɛ adwuma yiye. Ɛdenam ring gauges a wode bɛka wo manufacturing nhyehyɛe ahorow ho so no, wubetumi anya quality control a ɛkɔ anim na wo nneɛma no nyinaa gyinapɛn atu mpɔn.

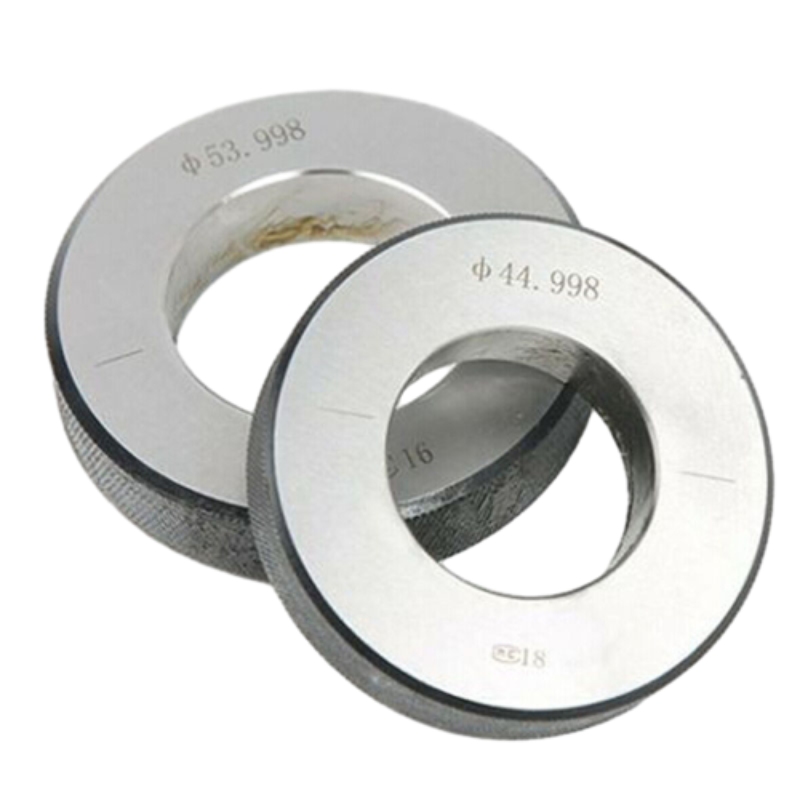

Nkataso a ɛyɛ mmerɛw .

gyinapɛn: GB1957-81 DIN7162 .

Ɛyɛ pɛpɛɛpɛ:H6 H7 H8 H9.

Unit – mm .

Storaen Ring Gauge Nkyerɛkyerɛmu: Dual gyinapɛn a wɔagye atom sɛnea GB1957/DIN7162 kyerɛ no.

Storaen ring gauges no gyina hɔ sɛ adanse a ɛkyerɛ sɛ mfiridwuma a ɛyɛ pɛpɛɛpɛ, a wɔayɛ no yiye sɛnea ɛbɛyɛ a ɛne GB1957 ne DIN7162 amanaman ntam gyinapɛn ahorow nyinaa bedi so —nsusuwii abien a ɛyɛ papa wɔ dimensional metrology mu. Wɔayɛ no sɛnea ɛbɛyɛ a wobetumi anya pɛpɛɛpɛ akodu H6 adesuakuw no mu, na saa gauge ahorow yi yɛ ring gages master, de sika kɔkɔɔ gyinapɛn a wɔde susuw bore diameter no si hɔ wɔ nnwuma a ɛnyɛ nea wobetumi asusuw ho, efi kar yɛ so kosi ahunmu mfiridwuma ne mfiridwuma mfiri a wɔyɛ so.

Wɔde dade a wɔde afra a ɛyɛ fɛ na ɛyɛe, na yɛn dade nkaa ho mfonini ahorow no fa ɔhyew-aduru a ɛyɛ den mu de ma ɛyɛ den na ɛko tia ɔbrɛ, na ɛma ɛyɛ adwuma bere nyinaa wɔ mfiridwuma mu mmeae a emu yɛ den mpo. Nneɛma no mu ɔhyew ntrɛwmu nsusuwii a ɛba fam no ma mfomso a efi ɔhyew nsakrae mu ba no so tew, ade titiriw a ɛma wotumi de ahotoso kɔ so wɔ wiase nyinaa nneɛma a wɔyɛ mu. Gauge biara wɔ ɔfasu a wɔayɛ no fɛfɛɛfɛ, a ɛtew akasakasa so bere a wɔresusuw nneɛma no na ɛbɔ ho ban fi nsensanee a ɛwɔ akwanhyia mu a ebetumi asɛe pɛpɛɛpɛyɛ ho.

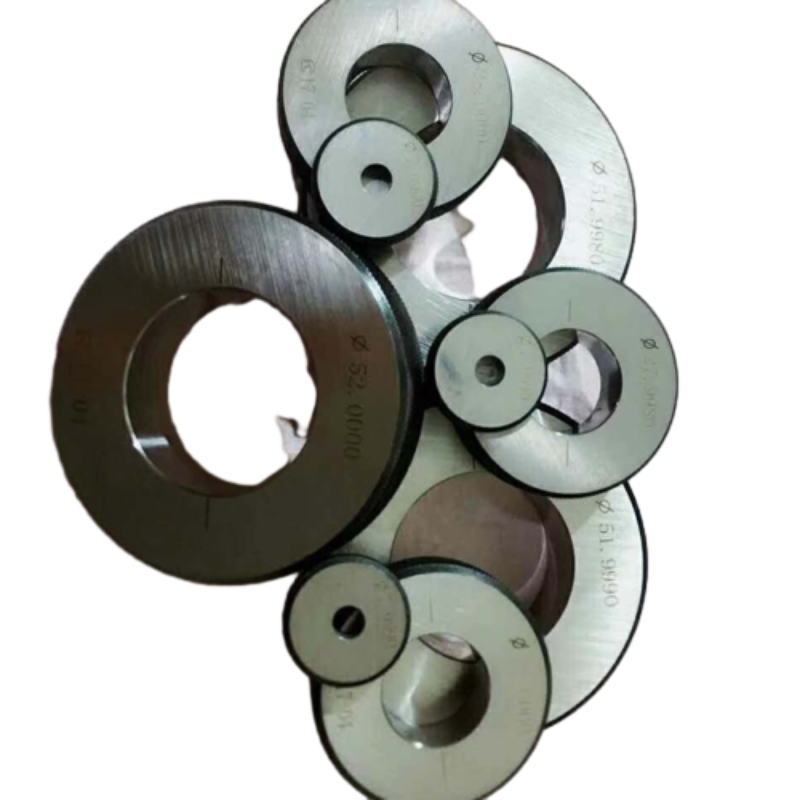

Yɛn nneɛma a yɛyɛ no bi ne ring gages a ɛnyɛ den a wɔde yɛ nhwehwɛmu a ɛwɔ afã biako ne ring gauge sets a ɛbom yɛ akɛse pii, a eye ma adwumayɛbea ahorow a ɛhwehwɛ sɛ wɔde ano aduru a ɛyɛ papa a wɔde di dwuma wɔ ɔkwan a ɛyɛ papa so. Sɛ́ ebia wuhia gauge a wode bɛhwɛ sɛ bearing a ɛyɛ pɛpɛɛpɛ a ɛwɔ mu no mu ntwemu yɛ nokware anaasɛ wobɛhyehyɛ hydraulic component bore no, Storaen de nhyehyɛe ahorow a ɛne w’ahiade pɔtee hyia ma. gauges nyinaa di Go/No-GO susudua nnyinasosɛm no so: "Go" awiei no si ɔfã bi dimensional conformity so dua, bere a "no-go" awiei no hwɛ hu sɛ ɛntra tolerances a wɔma ho kwan, streamlining inspection processes for efficiency.

Ring gauge class H6 designation no kyerɛ yɛn bo a yɛasi sɛ yɛbɛma ultra-tight tolerances —mpɛn pii no wɔ ±0.0005mm mu ama nominal sizes a ɛkɔ 50mm —a ɛma yɛn gauges no fata ma applications a ɛhwehwɛ micron-level precision. Saa pɛpɛɛpɛyɛ gyinabea yi nam yɛn dan mu calibration laboratories so di ho adanse, a wɔde interferometers a ɛkɔ anim ne coordinate measuring mfiri (CMMs) ahyɛ mu, a ɛhwɛ ma gauge biara du anaasɛ ɛboro amanaman ntam abodwokyɛre gyinapɛn a ɛyɛ den sen biara no so. Aguade biara a wɔde di dwuma no de adansedi krataa a wotumi hwehwɛ mu ka ho, na ɛde ne dwumadi bata ɔman no mu metrology gyinapɛn ahorow ho ma wɔyɛ mmara a edi mũ ho nkrataa.

Wɔ adetɔfoɔ a wɔrehwehwɛ ring gauges a wɔtɔn no fam no, Storaen de nkyerɛkyerɛmu pon a ɛyɛ pɛpɛɛpɛ a ɛkata din kɛseɛ a ɛfiri 1.8mm kɔsi 300mm ma, a ɛwɔ akwan a wɔfa so susu metric ne inch nyinaa. Beyond standard offerings, yɛyɛ specialize wɔ amanne ano aduru, a nea ɛka ho ne non-standard diameters, soronko surface coatings (te sɛ chrome plating ma enhanced corrosion resistance), ne tailored ring gauge susuw nhyehyɛe ma industrial applications soronko. Yɛn mfiridwuma kuw no ne wɔn a wɔkra nneɛma no yɛ adwuma yiye de yɛ mfonini ahorow a ɛfa nsɛnnennen pɔtee bi ho, efi bere a wɔsusuw bores a emu dɔ wɔ ahunmu nneɛma mu so kosi aduruyɛ mfiri nketewa a ɛwɔ mu no mu ntwemu so.

Storaen a wobɛpaw no kyerɛ sɛ wode sika bɛto nea ɛsen adwinnade bi kɛkɛ mu —woanya ɔhokafo wɔ su pa mu. Yɛn ring gauges a yɛtɔn no yɛ nkwa nna nyinaa mu tumi krataa a ɛko tia honam fam sintɔ ahorow, a ɛka yɛn wiase nyinaa mfiridwuma mmoa nhyehyɛe no ho. Sɛ́ ebia woyɛ mfiri ketewaa bi a wɔtɔn mfiri anaasɛ adwumakuw kɛse bi a wɔyɛ nneɛma no, yɛn nneɛma no de ahotoso ne pɛpɛɛpɛyɛ a ehia na ama wɔatumi ayɛ nneɛma a wɔyɛ no yiye na wɔatew adwuma a wɔsan yɛ a ɛho ka yɛ den so no ma. Ahotoso a ɛwɔ Storaen mfe du du pii mu wɔ metrology mu: yɛn gauges nyɛ nnwinnade ara kwa; Wɔyɛ wo quality control framework no fapem.

Storaen’s After-Sales System for Inspection Tools: Full-cycle Guarantee fi Nneɛma a Wɔahyɛ Da Ayɛ So kosi Nnwinnade a Wɔmfa Nni Dwuma Mu .

Storaen’s after-shales system for ring gauges yɛ nea ɛboro ɔsom adwuma bi so —ɛyɛ ahofama a wode bɛhwɛ sɛ wo susudua nnwinnade no de pɛpɛɛpɛyɛ a ɛkɔ so daa bɛma wɔ wɔn nkwa nna nyinaa mu. Sɛ́ ebia woatɔ yɛn standard ring gauge products anaasɛ wo ne yɛn ayɛ biako wɔ nhwehwɛmu nnwinnade a ɛnyɛ amanne kwan so no, yɛde mmoa a efi awiei kosi awiei a ɛfa calibration, nsiesie, ne mfiridwuma ho nimdeɛ ho ma, na ɛhyɛ yɛn dwumadi sɛ wo hokafo a wowɔ ne mu ahotoso wɔ Quality Control mu no mu den.

Wɔ adetɔfo a wɔtɔ ring gauges ma wɔtɔn fi yɛn standard range —a plain ring gauges, ring gauge sets, ne master ring gauges ka ho —yɛfi ase de traceable calibration certificates a ɛma ɛyɛ nokware sɛ wodi GB1957, DIN7162, ne International ring gauge class gyinapɛn ahorow so (ɛkɔ H6 precision). Yɛn wiase nyinaa som adwumayɛbea ahorow no de afe afe recalibration services ma, de interferometer ahorow a ɛwɔ hɔ nnɛ di dwuma de hwɛ hu sɛ wo gauges no bɛkɔ so ayɛ pɛpɛɛpɛ bere a wode adi dwuma mfe pii mpo akyi. Eyi ho hia kɛse ma nnwuma te sɛ ahunmu ne kar, baabi a ring gauge susuw ahotoso nya nnwuma no su ne nea wodi so ho nkrataa so nkɛntɛnso tẽẽ.

Wɔ nhwehwɛmu nnwinnade a ɛnyɛ nea wɔtaa de di dwuma ho no, yɛn mfiridwuma kuw no de mmoa a ɛfata ma fi nhyehyɛe so kosi nea wɔde di dwuma so. Sɛ wo dwumadie soronko no hwehwɛ dadeɛ ring gauge a ɛwɔ coatings soronko, extended size ranges, anaa custom tolerance specifications a, yɛde nsakraeɛ akyi nsakraeɛ ne retrofitting services ma. Yɛn mfiridwumayɛfoɔ ne wo kuo no yɛ adwuma yie de siesie susudua ho nsɛnnennen, sɛ ɛyɛ optimizing a ring gauge set ma high-volume production lines anaasɛ resolving compatibility nsɛm wɔ complex machining environments.

Storaen ring gauge biara—ɛmfa ho sɛnea ɛte biara —ba a ɛwɔ nkwa nna nyinaa mu tumi krataa a ɛne honam fam sintɔ ahorow hyia, na ɛkyerɛ ahotoso a yɛwɔ wɔ yɛn dade ne carbide adansi no a ɛbɛkɔ so atra hɔ akyɛ no mu. Sɛnea ɛbɛyɛ a ɛbɛbrɛ na asɛe wɔ sɛnea wɔde di dwuma daa no ho no, yɛde ano aduru a ɛho ka sua ma ano aduru a ɛho ka sua, a nea ɛka ho ne sɛ wɔbɛma nneɛma a ɛwɔ soro no ayɛ nea wɔayɛ no fɛfɛɛfɛ ne dimensional revalidation ama gauges a ɛda adi wɔ adwumayɛ tebea horow a emu yɛ den mu. Yɛn botae ne sɛ yɛbɛtrɛw wo nnwinnade no dwumadi mu, atew ɛka a wobɛbɔ wɔ nneɛma a wode besi ananmu no so bere a wokura pɛpɛɛpɛyɛ a wo nhyehyɛe ahorow no gyina so no mu.

Mfiridwuma mu mmoa yɛ yɛn nyansapɛ a yɛde di gua akyi no mu ade titiriw. Yɛn 24/7 atɔfoɔ som kuo —adwumayɛfoɔ a metrology abenfoɔ —de wɔn ho to hɔ wɔ akyirikyiri haw ho nhyehyɛeɛ ma susudua a ɛne ne ho nhyia, na ɛboa wo ma wohu nsonsonoeɛ a ɛda nsɛm a ɛfa adwinnadeɛ ho ne mfomsoɔ a ɛfa dwumadie ho ntam. Yɛsan nso de nkyerɛkyerɛ nneɛma a wontua hwee ma, te sɛ video akwankyerɛ a ɛfa ring gauge a wɔde di dwuma yiye ho, nneɛma a wɔkora so yiye a wɔde besiw nsu a ɛbɛsɛe ano, ne afotu a wɔde bɛka gauge ahorow ho ayɛ nhyehyɛe a wɔde hwɛ nneɛma a ɛyɛ papa so.

Storaen a wobɛpaw no kyerɛ sɛ wubenya asomdwoe wɔ w’adwene mu denam nneɛma a nkwa wom a wɔtɔn akyi a ɛde wo adwumayɛ mu mmɔdenbɔ di kan no so. Sɛ́ ebia wode ring gage biako a ɛnyɛ den redi dwuma ama mfitiase nhwehwɛmu anaasɛ master ring gage a ɛyɛ den ama ISO adansedi akontaabu no, yɛn mmoa no nyin wɔ w’ahiade ahorow mu. Ɛnyɛ nnwinnade nko na yɛtɔn; Yɛhwɛ sɛ wɔbɛkɔ so ayɛ agyapadeɛ a ɛho hia wɔ wo quality assurance nhyehyɛeɛ mu, a wiase nyinaa kannifoɔ a ɔwɔ precision metrology mu nimdeɛ ne ahodeɛ gyina akyi. Fa wo ho to Storaen so sɛ wobɛma wo susudua no ayɛ pɛpɛɛpɛ, wo nhyehyɛe ahorow no hyia, na w’adwuma no akɔ w’anim —nnɛ ne mfe a ɛreba no mu.
