Beae a wofi mu: Hehebei, China .

Waranti: Afe 1 .

Mmoa a wɔayɛ no sɛnea wɔpɛ:OEM, ODM, OBM .

Nneɛma a wɔde yɛ nneɛma a wɔde yɛ nneɛma.

Nhwɛsode no nɔma:2008 .

Nneɛma:HT200-HT300 .

Pɛpɛɛpɛyɛ:Ade a wɔahyɛ da ayɛ .

Operation mode:a wɔayɛ no sɛnea wɔpɛ .

Adeɛ mu duru:Adeɛ a wɔde ayɛ adwuma .

Tumi a wɔde yɛ adwuma .

Nkyerɛkyerɛmu:1500-4000mm wɔ ne tenten mu anaasɛ wopɛ sɛ woyɛ .

Surface:T-slots .

Nneɛma a ɛyɛ den a ɛwɔ adwumayɛ ani so:HB160-240 .

Aduru a wɔde yɛ nneɛma a ɛwɔ soro: Nnwuma a wɔyɛ .

Foundry nhyehyɛe:Resin anhwea a wɔde gu .

Mfoniniyɛ:Primer ne anim mfoniniyɛ .

Surface coating:Pickling oil ne plastic-lined anaasɛ wɔde anticorrosion paint akata so .

pɛpɛɛpɛyɛ grade:2-3.

Adwumayɛ mu Ɔhyew:(20±55.) ℃

Nneɛma a wɔde kyekyere nneɛma: Plywood adaka .

Bere a wɔde di kan .

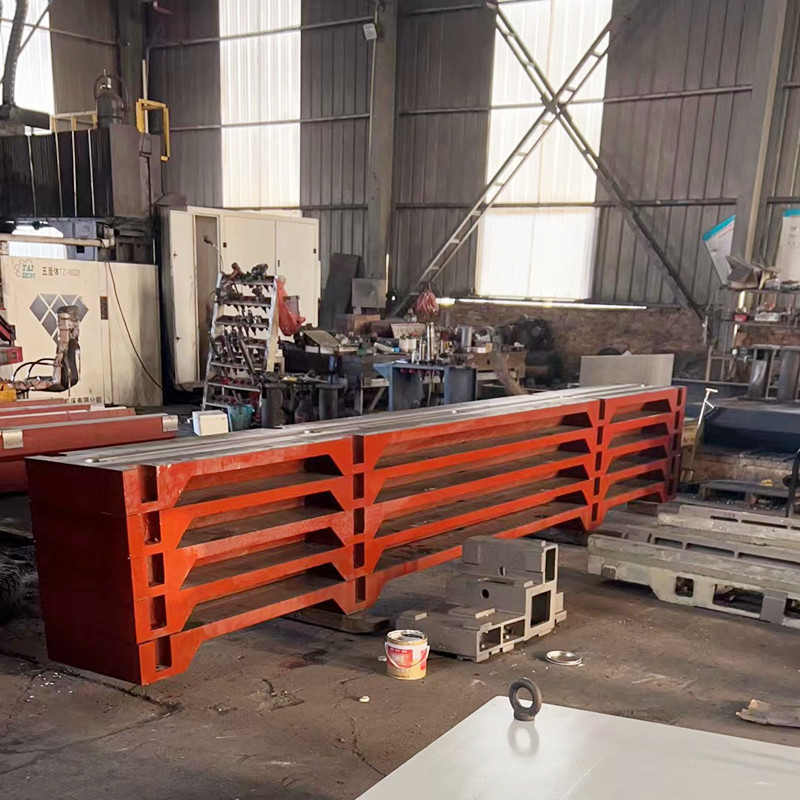

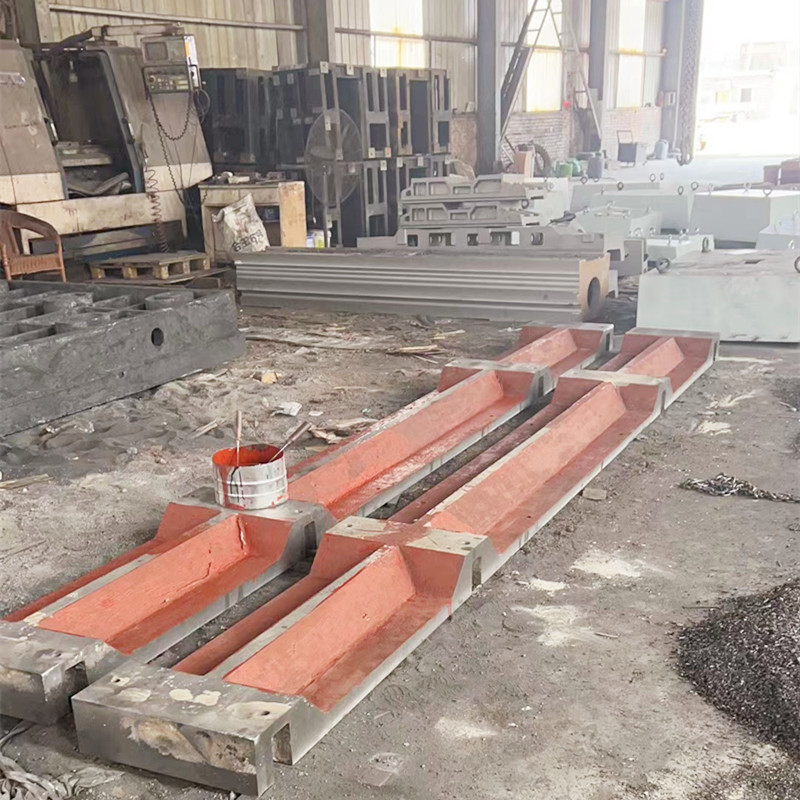

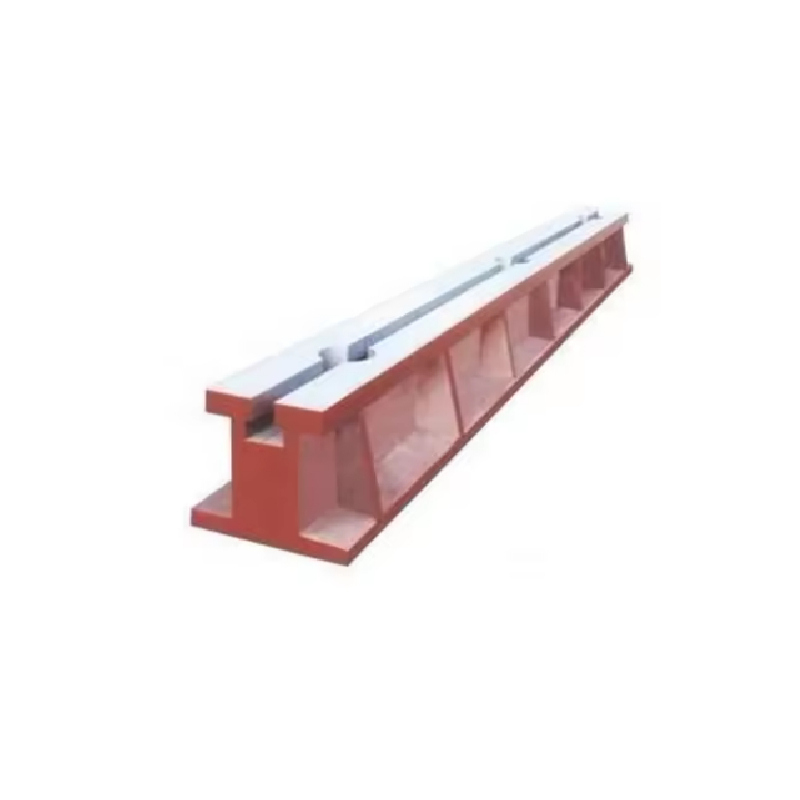

Cast Iron T-Groove asase so keteke kwan so nneɛma nso frɛ no: asase so keteke kwan, T-Groove asase so keteke kwan, asase so hann, fam a ɛyɛ nsu a wɔde gu fam, fapem a wɔde dade ayɛ, T-Groove asɛnka agua biako, dade a wɔde ayɛ asase so keteke kwan.
Botae titiriw a ɛwɔ cast iron T-groove fam keteke kwan so ne sɛ wɔbɛyɛ ho nhyehyɛe na wɔaboaboa ano ayɛ no cast beam platform a egyina mmeae a wɔahyɛ da ayɛ wɔ nnwinnade no so. Wɔde di dwuma titiriw ma nhyiam, sɔhwɛ, welding, ne nhwehwɛmu a wɔyɛ wɔ nnwinnade akɛse ho.

Nneɛma a ɛwɔ honam fam mfaso a ɛwɔ dade T-Groove asase so keteke kwan so .:
Mfaso a ɛwɔ dade T-groove asase so keteke kwan so: Ɛdenam dade a wɔde gu fam a wɔde gu fam a wɔde di dwuma so no, ɛho nhia sɛ wɔyɛ no asɛnka agua akɛse so, na ɛma nneɛma ho ka yɛ kɛse na egye baabi ketewaa bi, na ɛma ɛho ka kɔ soro.

Nneɛma a ɛwɔ cast iron T-groove fam keteke kwan no yɛ high-strength grey cast iron HT200-250, a ɛwɔ adwumayɛ soro den a ɛyɛ HB170-240. casting no ayɛ rounds abien artificial annealing wɔ 600 °C -700 °C anaasɛ abɔde mu onyin mfe 2-3 de ayi emu adwennwen koraa, a ɛyɛ pɛpɛɛpɛ a ɛyɛ pɛpɛɛpɛ ne ɔbrɛ a ɛyɛ papa a ɛko tia.

Resin anhwea a wɔde gu: sɛnea keteke kwan a wɔfa so yɛ no hwɛ hu sɛ ɛyɛ den .

Pɛpɛɛpɛ wɔ linear guide rails mu no fi ase denam manufacturing excellence so. Storaen de resin sand casting a ɛkɔ anim di dwuma de yɛ mfiridwuma a emu yɛ duru a ɛyɛ linear guide rails a ɛma ahoɔden a ɛso bi nni ma ahunmu, kar, ne nnwuma a emu yɛ duru a wɔde di dwuma. Sɛnea yɛn nhyehyɛe no hwɛ hu sɛ ahotoso ne adwumayɛ wɔ akwankyerɛ keteke ahorow nyinaa mu ni .:

1. Nneɛma a ɛyɛ papa: HT200-HT300 Dade a wɔde yɛ nneɛma a wɔde yɛ adwuma .

Resin anhwea a wɔde gu mu no fi ase denam HT200-HT300 a ɛyɛ fitaa a wɔde gu so a wɔpaw (160–240HB den) so.:

Ahoɔden a ɛkari pɛ: 200–300MPa ahoɔden a ɛyɛ den no boa nnwinnade a ɛretu tɔn 5–50, a eye ma linear guide rails a emu yɛ duru.
Adwennwene a ɛko tia: Aburow a ɛyɛ pɛ nhyehyɛe no ma nhyɛso a ɛwɔ mu no so tew 40% vs. green sand casting, ɛtew warping so wɔ 10°C–40°C mmeae a ɛwɔ hɔ ma mfiri akwankyerɛ keteke kwan a ɛkɔ so daa no adwumayɛ.

2. Pɛpɛɛpɛyɛ a wɔde yɛ geometries a ɛyɛ den .

Resin anhwea a ɛyɛ den a ɛma ne ho yɛ den no ma kwan ma ɛyɛ intricate guide rail types a ɛwɔ ahoɔden a ɛyɛ den .:

CNC-nhwɛsoɔ pɛpɛɛpɛyɛ: T-slot nsusuiɛ (14–36mm tɛtrɛtɛ, 8–20mm bun) a wɔnyaeɛ a ±0.1mm pɛpɛɛpɛyɛ ma seamless nkabom ne automation nhyehyɛeɛ.
Core stability: Internal cores kura 0.05mm/m tẽẽ, siw sintɔ ahorow ano na ɛhwɛ hu sɛ class 2–3 flatness (≤0.02mm/m ma 2000mm rails) —critical ma pɛpɛɛpɛ alignment.

3. Ɔhyew a wɔde yɛ ade ma ɛyɛ den & ɛyɛ den .

anammɔn 3 nhyehyɛe ma keteke kwan so adwumayɛ yɛ kɛse .:

Adwennwene a ɛma obi ho tɔ no (550°C/4H): yi casting stress 90% fi hɔ de siw deformation ano wɔ machining/transport mu.
Normalizing: Refine aburow nhyehyɛe ma 2x tenten wear resistance wɔ high-cycle applications (10,000+ load cycles).
Surface Grinding: Finishes to RA ≤1.6μm ma ɛyɛ mmerɛw na ɛyɛ friction ketewaa bi wɔ automated systems mu.

4. customizable sizing & load tumi .

Storaen yɛ nsakrae wɔ ɔkwan a wɔfa so yɛ adwuma no kɛse ne adesoa ahiade nyinaa mu .:

Standard range: 1500–4000mm tenten, 200–500mm trɛw ma wɔtaa de di dwuma; Custom sizes a ɛkɔ 6000mm ma mfiri a ɛsõ dodo.
Nsusuiɛ a wɔahyɛ no den: Wɛb nhyehyeɛ ma adesoa tumi kɔ soro 30% (ɛkɔduru tɔn 80/m a wɔmfa mu duru nka ho, ɛyɛ papa ma ahunmu nhyiamu a ɛhia sɛ wɔyɛ no pɛpɛɛpɛ na ɛtumi tu.

5. Storaen no casting mfaso .

Nneɛma a wotumi de di dwuma wɔ akwan horow so: ɛma keteke kwan ahorow nyinaa—efi keteke kwan a ɛyɛ pɛpɛɛpɛ a emu yɛ hare so kosi mfiri a emu yɛ duru a ɛyɛ den so—a ɛyɛ pɛpɛɛpɛ pɛpɛɛpɛ.
Quality Assurance: 3D laser scanning/CMM sɔhwɛ hwɛ ma wodi GB/T 1958-2017/ISO 1101, a wɔde afe 1 warranty a ɛko tia dimensional drift gyina akyi.
Efficiency: 500pcs/da tumi de standard rails ma wɔ nnafua 7 mu, custom solutions wɔ adapɛn 4–6 mu —kari pɛ ahoɔhare ne ahoɔden a ɛyɛ den.

Wɔayɛ pintinn wɔ linear guide rails mu, ɛnyɛ akwanhyia mu. Storaen resin sand casting no ka nneɛma a ɛyɛ fɛ, precision molding, ne ɔhyew a ɛyɛ den a wɔde yɛ adwuma bom de linear guide rails a emu yɛ duru ne mfiri akwankyerɛ keteke kwan a edi mfiridwuma mu ahwehwɛde ahorow a emu yɛ den sen biara ho dwuma ma. Hwehwɛ yɛn akwankyerɛ keteke ahorow nnɛ na nya nsonsonoe a nneɛma a wɔyɛ no yiye yɛ wɔ nnwinnade adwumayɛ ne nkwa tenten mu no mu osuahu.

Sɛnea Guide Rails sesa cast iron surface mprɛte ma ɛka a wɔbɔ wɔ ho .

Atetesɛm mu dade a wɔde gu so mprɛte a wɔde di dwuma wɔ amanne kwan so no di mfiridwuma mu nhyiam ne nhwehwɛmu so, nanso wɔn kɛse, wɔn kɛse a wɔde si hɔ, ne ɛka a wɔbɔ wɔ nsiesie ho kɛse no ma nnɛyi nneɛma a wɔyɛ no yiye no hyia. Storaen de linear guide rails ba sɛ ɔkwan foforo a ɛho ka sua, a ɛde pɛpɛɛpɛyɛ, nsakrae, ne ɛka a wɔbɔ wɔ sika a wɔde sie nyinaa 30% ho ma sɛ wɔde toto mprɛte a wɔtaa de di dwuma no ho a. Sɛnea yɛn akwankyerɛfo keteke ahorow no kyerɛkyerɛ mfiridwuma adwuma mu no ni .:

1. Ahunmu-kora nhyehyɛe: 50% nan ase tew .

Dadeɛ mprɛte a wɔde ayɛ mprɛte (sɛ nhwɛsoɔ, 2000x1500mm) hwehwɛ sɛ wɔde fa fam kɛseɛ na wɔde fapem a emu yɛ duru, nanso Storaen’s heavy-duty linear guide rails ma modular, streamlined solutions .:

Vertical & Horizontal Flexibility: Vertical Guide Rails (sɛ nhwɛso no, 1500mm sorokɔ nhwɛso) Fa vertically si afasu anaa gyinabea so, na ɛyɛ 3D nhyiam adwumayɛbea ahorow a wɔmfa fa fam mmɔ afɔre—ɛyɛ papa ma robɔt nkwammoaa a ɛyɛ ketewaa anaasɛ welding gyinabea ahorow a ɛyɛ adwuma wɔ ɔkwan a ɛyɛ adwuma so.
Nneɛma a wotumi sesa: Standard Guide Rail kɛseɛ no firi 1000–4000mm, ɛwɔ splicing a ɛnyɛ den a wɔde yɛ adwuma boro so (ɛkɔ 6000mm), ɛtew nneɛma a wɔsɛe no so 40% ne cast iron mprɛte a wɔde twitwa nneɛma.

2. Pɛpɛɛpɛyɛ a ɛho ka sua a enni mu .

Bere a dade mprɛte a wɔde ayɛ no nya Class 2 flatness (≤0.02mm/m) no, Storaen’s ground-finish linear guide rails no ne saa pɛpɛɛpɛyɛ yi hyia wɔ 30% akwankyerɛ keteke bo a ɛba fam no mu:

Nneɛma a wɔde yɛ adwuma yiye: HT200 cast iron construction (180hb hardness) de nneɛma a ɛba fam 25% di dwuma sen mprɛte a ɛyɛ den a ɛwɔ soro bere a ɛkora 50 ton/m adesoa tumi so, ɛkari pɛ wɔ rigidity ne sikasɛm mu.
Nsiesiei a wɔatew so: Anti-corrosion pickling oil finishes (5μm thickness) bɔ ho ban fi coolant ne nsu a ɛyɛ nwini ho, na ɛtrɛw ɔsom nkwa nna mu 2x sɛ wɔde toto mprɛte a wɔmfa nkata so a ɛhwehwɛ sɛ wɔsan yɛ afe afe ( $5,000+ a wɔbɔ ma mprɛte akɛse) no ho.

3. Adapability ma adwumayɛ nhyehyɛe a ɛyɛ nnam .

Fixed cast iron mprɛte di aperepere wɔ nneɛma a wɔyɛ no ahiade a ɛsakra ho, nanso yɛn akwankyerɛ keteke ahorow no di mu wɔ versatility mu .:

Modular T-slot design: 14–36mm trɛw slots (±0.1mm tolerance) gye ntɛm-release clamps, robɔt nsa, anaa susuw nnwinnade, a ɛma simma 5 fixture reconfiguration versus 2+ nnɔnhwerew ma mprɛte-gyina nhyehyɛe.
Adwumayɛ a emu yɛ duru: Reinforced heavy duty linear guide rails (80 tons/m load capacity) boa nnwinnade akɛse te sɛ stamping press components anaa aerospace fuselage afã horow, a wɔde keteke kwan nhyehyɛe biako a ɛyɛ mmerɛw a ɛma alignment yɛ mmerɛw si nhyiam ahorow a ɛwɔ mprɛte pii so ananmu.

4. Storaen bo a ɛsom ho ɔsɛmpɔw: Ɛboro ɛka a wɔbɛkora so ara kwa so .

Rapid deployment: Pre-machined rails hyɛn a wɔasiesie ama installation, twitwa setup bere 60% sɛ wɔde toto leveling ne anchoring cast iron plates ho a.
Amanneɛbɔ ano aduru: Wohia anti-magnetic coatings ma ɛlɛtrɔnik assembly anaasɛ oversized guide rail size ma mframa turbine a wɔyɛ? Yɛn OEM kuw no de tailored machine guide rails ma wɔ adapɛn 4–6 mu, a wɔmfa sika a wɔde kra nneɛma ho ka a ɛba fam koraa biara mma.
Quality Assurance: Keteke biara hyia GB/T 1958-2017 geometric tolerances na ɛka ho ne afe 1 warranty —a ɛde asiane a ɛwɔ hɔ sɛ wɔde wɔn sika bɛto sikasɛm nhyehyɛe a ɛnyɛ adwuma mu no mu.

5. Applications a ɛka a wɔbɔ wɔ ɛka ho no hyia adwumayɛ .

Kar Nhyiam: Fa 2000mm heavy-duty linear guide rails abien a ɛyɛ 2000mm mprɛte mprɛte no si ananmu, na sie $10,000 wɔ upfront ka mu ne 20% fam baabi ma engine block alignment.
Aerospace tooling: Linear guide rails a emu yɛ hare (30% a ɛyɛ hare sen mprɛte a ɛne no sɛ) brɛ krane adesoa a wɔhwehwɛ no ase bere a wɔreyɛ ntaban no fã nhwehwɛmu no, na ɛtew ahoɔden a wɔde yɛ adwuma ho ka so.
General Machining: Portable guide rail types (50–100kg weight) yi hia a ɛho hia sɛ wɔde mprɛte a wɔde besisi hɔ daa no fi hɔ, a eye ma adwumayɛbea ahorow a wɔtaa yɛ nnwinnade a wɔde yɛ adwuma no.

Mma dade mprɛte a wɔde ayɛ mprɛte a ne bere atwam no mma wo sikasɛm nhyehyɛe ne wo fam baabi nkɔ. Storaen linear guide rails no de pɛpɛɛpɛyɛ a wuhia no ma wɔ ɛka no fã ketewaa bi, a modularity kɔ daakye-adanse wo dwumadi ahorow mu. Efi heavy duty linear guide rails ma industrial giants to customizable guide rail types ma niche applications, yɛresan akyerɛkyerɛ bo a ɛsom wɔ adwuma ano aduru mu. Hwehwɛ yɛn akansi akwankyerɛ keteke bo options nnɛ na fi ase sie a womfa adwumayɛ mmɔ afɔre.

•
• Mfonini Text Nkyerɛkyerɛmu 1 .
•
•

Nkyerɛkyerɛmu ne Nhwɛso (Te tenten x trɛw x sorokɔ) (Unit: MM .)

1500 x 150 x 150 1500 x 200 x 150 1500 x 250 x 300 1500 x 300 x 400 .

2000 x 200 x 300 2000 x 250 x 300 2000 x 300 x 350 2000 x 350 x 350 .

2500 x 200 x 300 2500 x 250 x 300 2500 x 300 x 350 2500 x 2500 x 300 x 400 .

2750 x 200 x 300 2750 x 250 x 300 2750 x 300 x 350 2750 x 300 x 300 x 400 .

3000 * 300 * 300 3000 * 300 * 350 3000 * 300 * 400 3000 * 320 * 400

3200 * 300 * 300 3200 * 300 * 350 3200 * 300 * 400 3200 * 320 * 400

3500 * 300 * 300 3500 * 300 * 350 3500 * 300 * 400 3500 * 320 * 400

4000 x 300 x 300 4000 x 300 x 350 3500 x 300 x 400 4000 x 320 x 400 .

4500 x 300 x 350 4500 x 300 x 400 4500 x 320 x 400 4500 x 350 x 350 x 400 .

5000 x 300 x 400 5000 x 350 x 400 5000 x 400 x 450 .

Mfiridwuma ho nkyerɛkyerɛmu a ɛfa cast iron T-slot fam akwankyerɛ keteke kwan ho .:
