Aguade no din .: Frame level, fitter level .

Level ahorow abien na ɛwɔ hɔ .: Frame level ne bar level. Wɔde di dwuma titiriw de hwɛ sɛnea mfiri nnwinnade ahorow ne nnwinnade afoforo te tẽẽ, sɛnea ɛteɛ wɔ gyinabea a ɛda fam ne nea ɛkɔ fam a wɔde si hɔ no mu, na ebetumi nso ahwɛ sɛnea ɛkɔ anim nketewa no mu.

Akwankyerɛ a ɛfa sɛnea wode frame level bedi dwuma ho .:

Sɛ woresusuw a, twɛn kosi sɛ ahurututu no gyina hɔ koraa ansa na woakenkan. Botae a wɔakyerɛ wɔ level no so no yɛ inclination value a egyina mita biako so, a wobetumi de equation a edidi so yi abu akontaa .:

Ankasa tilt value=scale indication x l x dodow a ɛwɔ deviation grids mu .

Sɛ nhwɛso no, nsenia akenkan no yɛ 0.02mm/l=200mm, a ɛwɔ 2 grids.

Enti: ankasa tilt bo=0.021000 × 200 × 2=0.008mm .

Zero nsakrae kwan .:

Fa level no to mprɛte a ɛyɛ tratraa a ɛyɛ den so na twɛn ma ahurututu no gyina ansa na woakenkan A, afei dannan adwinnade no digrii 180 na fa si ne mfitiase gyinabea so kenkan b. zero gyinabea mfomso a ɛwɔ adwinnade no mu yɛ 1/2 (AB); Afei, sansan fixing screws a ɛwɔ spirit level no afã no, fa 8mm hex wrench hyɛ eccentric adjuster no mu, dannan no, na yɛ zero adjustment. Saa bere yi, sɛ wohu sɛ adwinnade no adannan digrii 5 akɔ n’anim na akɔ akyi, na level bubble no kankan no yɛ kɛse sen 1/2 wɔ scale value no mu a, ɛho hia t .

o Dannan benkum ne nifa adjusters no bio kosi sɛ ahurututu no renhinhim ne adwinnade no ani a ɛkɔ fam no. Ɛno akyi no, ɛho hia sɛ wohwɛ sɛ ebia zero gyinabea no atu anaa. Sɛ zero gyinabea no ankɔ a, kyekyere fixing screw no mu denneennen na siesie no.

Ahwɛyiye ma frame level .:

1. 1.Ansa na wode bedi dwuma no, fa pɛtro hohoro adwinnade no adwumayɛbea no ho na fa cotton asaawa a ɛho ntew popa ho.
2. 2.Ɔhyew mu nsakrae betumi de susudua mu mfomso aba na ɛsɛ sɛ wɔtew ho fi ɔhyew ne mframa fibea ho bere a wɔde redi dwuma no.
3. 3.Wɔbɛtumi ayɛ akenkan akyi nko ara na ahurututu no agyae koraa (bɛyɛ sikɔne 15 wɔ bere a wɔde level no asi susudua no so akyi .)
4. 4.Sɛnea ɛbɛyɛ a wobɛkwati mfomso ahorow a efi gyinabea a ɛyɛ zero a ɛnyɛ pɛpɛɛpɛ ne parallelism a ɛwɔ adwumayɛ soro no mu ba no, hwɛ na yɛ nsakrae ansa na wode adi dwuma.

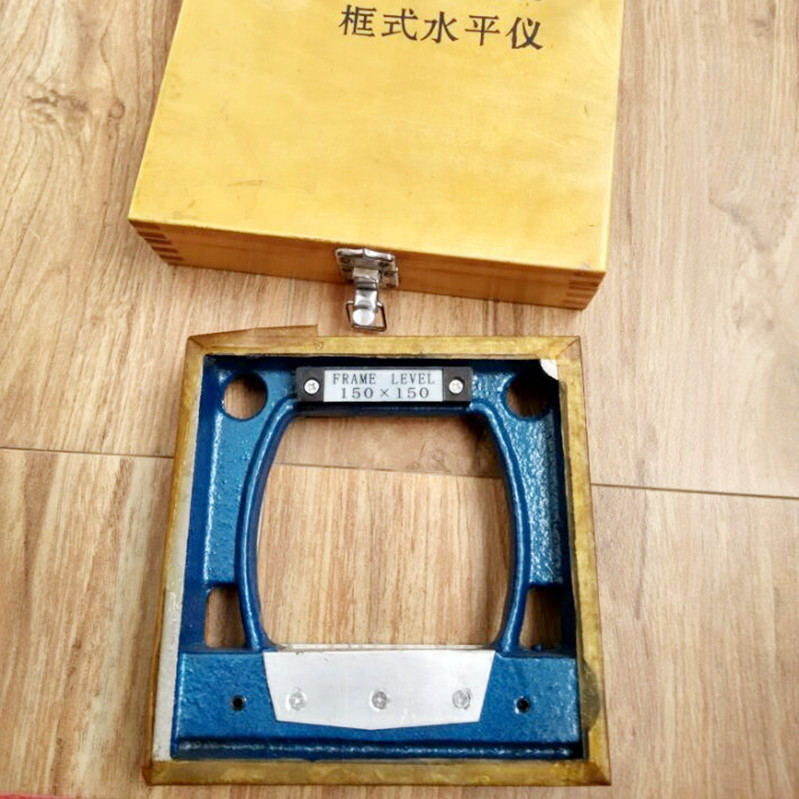

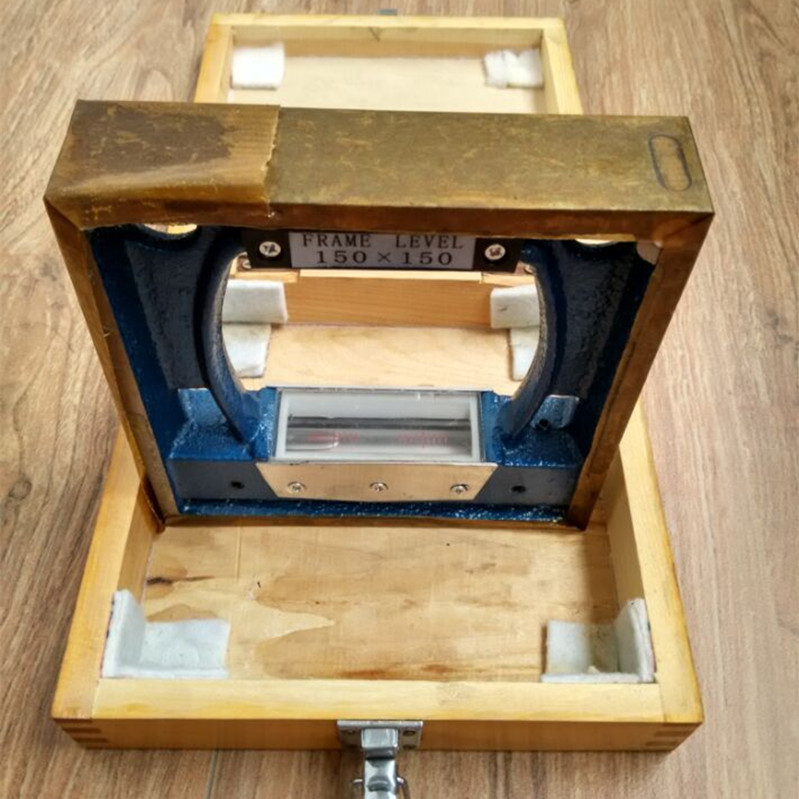

Frame level nkyerɛkyerɛmu .：

Precision frame level: Nneɛma atitiriw & dwumadie .

A precision frame level yɛ tweatiboɔ a ɛyɛ pɛpɛɛpɛ susudua wɔ mfiridwuma ne adwumayɛbea tebea mu, a wɔayɛ sɛ ɛde ahoɔden a ɛso bi nni ne ahotosoɔ a ɛwɔ hɔ ma detecting horizontal ne vertical deviations. Sɛ́ ade a ɛyɛ fɛ wɔ frame levels mu no, saa adwinnade yi ka adansi a ɛyɛ den ne optical technology a ɛkɔ anim bom, na ɛma ɛyɛ nea ɛho hia ma adwumayɛfo a wɔhwehwɛ sɛ wɔyɛ pɛpɛɛpɛ wɔ adwuma biara mu.

Nneɛma atitiriw a ɛkyerɛkyerɛ nea eye sen biara mu .

1. High-Accuracy Bubble System: Wɔde ahyɛ mu a wɔde calibrated frame honhom level vial, yɛn precision frame spirit level hwɛ hu sɛ wobetumi ahu afi afã horow pii, na ɛma wɔn a wɔde di dwuma no tumi hu mpo sɛ wɔbɛdannan wɔn ho kakra (ɛba fam te sɛ 0.02mm/m deviation). Nneɛma a wɔayɛ no abien a ɛyɛ abien no boa susudua a ɛkɔ soro ne nea ɛkɔ soro no nyinaa, na eyi hia a ehia sɛ wɔyɛ nnwinnade pii no fi hɔ.

2. Ɔdansi a ɛtra hɔ kyɛ: Wɔde aluminum anaa dade a wɔde yɛ wimhyɛn na ɛyɛe, na saa nnua a wɔde yɛ nneɛma no gyina nsu a ɛyɛ mmerɛw, nea ɛbɔ, ne ɔhyew a ɛsakrasakra ano, na ɛma ɛyɛ pɛpɛɛpɛ wɔ mmeae a ɛyɛ den no. Ntwea a wɔahyɛ no den no bɔ nkotoku no ho ban fi nneɛma a ɛsɛe ho, na ɛtrɛw adwinnade no nkwa nna mu ma ɛsom bo bere tenten.

. Saa nneɛma pii a wotumi de di dwuma yi ma ɛyɛ nea wɔpaw ma mfiri a wɔde si hɔ, nnua a wɔde yɛ adwuma, ne adansi ho mfiridwuma.

Application ahorow a ɛtrɛw .

Sɛ́ ebia woreyɛ mfiridwuma mu mfiri a emu yɛ duru, a wobɛhwɛ ahu sɛ wobɛhyɛ adansi nhyehyɛe ahorow no plumb, anaasɛ wode nnwinnade a ɛyɛ pɛpɛɛpɛ a ɛyɛ pɛpɛɛpɛ no, pɛpɛɛpɛ frame level no bɛma woanya nea wotumi de ho to so. Ne kɛse a ɛyɛ ketewaa ne ergonomic grip nso ma ɛyɛ nea eye ma mmeae a ɛyɛ den, baabi a atetesɛm mu nnwinnade yera no. Nnwumayɛfo a wɔyɛ nneɛma a wɔyɛ, adansi, ne nneɛma pa a wɔhwɛ so no de wɔn ho to saa nhyehyɛe ahorow yi so na ama mfomso a wɔyɛ no so atew, ama adwumayɛ atu mpɔn, na wɔakura nnwuma gyinapɛn ahorow mu.

Wɔ nnwuma a wɔrehwehwɛ ano aduru a ɛho ka sua no fam no, yɛn level frame pricing no kari pɛ wɔ premium quality ne akansi bo, a ɛma bulk discounts ne customized models a ɛfata adwuma no ahwehwɛde ahorow. Fa sika to precision frame spirit level mu nnɛ na nya nsonsonoeɛ a ɛwɔ susudua mu a wobɛtumi de wo ho ato so.

Frame level dwumadie ho ahwɛyiye & mfomsoɔ ano aduru .

Sɛ wɔde frame level di dwuma yiye a, ɛho hia kɛse na ama wɔakura susuw pɛpɛɛpɛyɛ mu na ama adwinnade no nkwa nna akyɛ. Sɛ wode standard frame spirit level anaasɛ high-end precision frame level redi dwuma a, ahwɛyiye yi a wobɛbata ho no hwɛ ma wonya nea wotumi de ho to so na ɛtew mfomso a ɛwɔ mfiridwuma, adansi, anaa adwumayɛbea tebea mu no so.

1. Nhwehwɛmu a wɔyɛ ansa na wɔde adi dwuma & calibration .

Ansa na wode bedi dwuma biara no, hwɛ sɛ frame level no yɛ adwuma wɔ hɔ a ɛho tew na nneɛma a asɛe nni mu —mfutuma ketewaa bi mpo betumi ama obi anhyia. Sɛ wopɛ sɛ wuhu sɛnea nneɛma a ɛwɔ mu no yɛ pɛpɛɛpɛ a, hwɛ sɛnea ahurututu no mu nsu ntumi nkɔ mu no mu hwɛ sɛ mframa ntumi nkɔ mu na ɛne ne ho hyia a ɛfata: Fa level no si baabi a ɛyɛ tratraa a wonim so, hyɛ ahurututu no gyinabea nsow, afei dannan no 180°—ɛsɛ sɛ ahurututu no san kɔ agyiraehyɛde koro no ara so. Sɛ ɛnte saa a, fa nea ɔyɛe no akwankyerɛ no san yɛ no foforo anaasɛ kɔ obi a onim adwuma no nkyɛn na woakwati mfomso a ɛwɔ nhyehyɛe mu.

2. Nneɛma a atwa yɛn ho ahyia a ɛsɛ sɛ wodi so .

Ɔhyew a ɛsakrasakra ne ɔhyew a ɛwɔ mu no betumi aka adwinnade no nneɛma (sɛ nhwɛso no, dade ntrɛwmu/apam) ne ahurututu no mu nsu a ɛyɛ pɛpɛɛpɛ no nyinaa. Fa frame levels sie wɔ baabi a ɛhɔ yɛ kusuu na ɛhɔ yɛ hyew, na ma adwinnade no nkɔ so nyɛ adwuma wɔ ɔhyew a ɛyɛ adwuma no mu simma 10–15 ansa na wode adi dwuma. Kwati sɛ wobɛma ayɛ owia hann tẽẽ anaasɛ ɔhyew/nwini a ano yɛ den, efisɛ eyinom betumi asɛe susuw na asɛe ahina no.

3. Adwumayɛ ho akwan a ɛteɛ .

Sɛ woresusuw a, fa nhyɛso mpo gu frame level no ano anan no nyinaa so na ama woahwɛ ahu sɛ wo ne ɔfasu no bedi nkitaho koraa—atiridii anaasɛ nhyɛso a ɛnteɛ yɛ ade a ɛtaa ba nnipa mfomso so. Sɛ wopɛ sɛ wosusu gyina hɔ a, fa plumb vial (sɛ ɛyɛ dual-vial design) di dwuma na hwɛ hu sɛ level no ne reference edge no hyia pɛpɛɛpɛ. Wɔ spaces a ɛyɛ den mu no, paw compact precision frame level a ergonomic grips wom na ama atumi agyina a ɛnyɛ overstretching.

4. Nsiesiei a Ɛyɛ Paara a Wɔkora So & Nneɛma a Wɔkora So .

Sɛ wode di dwuma wie a, fa ntama a ɛyɛ mmerɛw ne ade a ɛho tew a ɛnyɛ corrosive cleaner a ɛnyɛ den popa no ma dade a ɛwɔ soro no fi hɔ na ama ngo anaa nea aka no afi hɔ. Hwɛ sɛnea nsuhina no mu apaapae anaasɛ nsu no retu daa—sɛe a ɛsɛe wɔ frame honhom mu nsu mu no hwehwɛ sɛ wɔsesa no ntɛm ara. Fa sie tẽẽ wɔ ahobammɔ tebea mu na amma frame no ankyinkyin, titiriw ma nnua akɛse a ɛwɔ nsusuwii ano a ɛware.

5. Mfomso a ɛtaa ba no kanyan ma wɔkwati .

Sɛ wubu w’ani gu ɔfasu no ani a ɛyɛ tratraa so a: Hwɛ sɛnea nnyinaso no ani yɛ kusuu bere nyinaa ansa na woasusuw —ɔfa a ɛnyɛ pɛpɛɛpɛ no bɛma nea eye sen biara mpo a ɛyɛ pɛpɛɛpɛ no ayɛ nea ɛnyɛ nokware.
Rushing bubble stabilization: Ma kwan ma 2–3 seconds ma bubble no ntra koraa ansa na woakenkan, titiriw wɔ mmeae a ɛwosow.
Calibration cycles a wobu wɔn ani gu so: Ɛsɛ sɛ wɔsan yɛ nnwinnade a ɛyɛ pɛpɛɛpɛ te sɛ pɛpɛɛpɛ frame spirit levels afe biara anaa bere a wɔanya nkɛntɛnso kɛse akyi na ama wɔatumi akura adwumayɛbea-grade pɛpɛɛpɛyɛ mu.

Sɛ wudi akwankyerɛ ahorow yi akyi a, ɛnyɛ sɛ wobɛma ahotoso a ɛwɔ wo frame-level susudua no mu ayɛ kɛse nko, na mmom wobɔ wo sika a wode asie no ho ban nso. Ɔhwɛ a ɛfata betumi atrɛw adwinnade no som adwuma mu, na ɛbɛtew hia a ehia sɛ wɔtaa de si ananmu no so na ɛma level frame ahorow no bo a ɛsom bo no yɛ papa bere a bere kɔ so no. Fa saa ahwɛyiye yi di kan de hwɛ hu sɛ susudua biara yɛ pɛpɛɛpɛ te sɛ adwinnade no ankasa.

Dɛn nti na ɛsɛ sɛ yɛpaw yɛn precision frame levels?

Wɔ Storaen no, yɛyɛ pɛpɛɛpɛ wɔ pɛpɛɛpɛyɛ frame levels a ɛka pɛpɛɛpɛ a ɛso bi nni ne rugged durability na ɛyɛ wɔn a wɔyɛ adwuma wɔ mfiridwuma, adansi, ne adwumayɛbea tebea mu. Nea ɛma yɛda nsow ni .:

1. Pɛpɛɛpɛyɛ a enni ano .

Yɛn precision frame honhom level mfiridwuma no hu sɛ deviations yɛ fɛ te sɛ 0.02mm/m, ɛho hia ma ahunmu, CNC alignment, ne structure checks. Dual-vial design no hwɛ ma akenkan a ɛkɔ soro/ɛda so ara kenkan bere koro mu, na ɛtew rework ne mfomso so. Fa Storaen di dwuma wɔ susudua a ɛdu gyinapɛn a ɛkorɔn sen biara ho.

2. Wɔasi ama nneɛma a atwa yɛn ho ahyia a ɛyɛ den .

Wɔde aluminum a ɛyɛ wimhyɛn a wɔde nneɛma a ɛko tia nsu a ɛyɛ hyew akata so na ɛyɛe, na yɛn nnua no dodow gyina ɔhyew a ano yɛ den, nea ɛde ba, ne nnuru ano. Nnua a wɔahyɛ no den bɔ ahina ho ban fi nsu a ɛtɔ gu fam ho, bere a nneɛma a wɔde yɛ nneɛma a ɛyɛ pɛpɛɛpɛ no ma micron-level yɛ tratraa —ɛfata ma dade a wɔde yɛ nneɛma, mpoano a wɔde nsu gu mu, ne nneɛma a emu yɛ duru a wɔde di dwuma.

3. Nneɛma a wɔde di dwuma no ho nhyehyɛe .

Ergonomic grips ne lightweight profile ma yɛn precision frame levels yɛ mmerɛw sɛ yɛbɛdi ho dwuma wɔ spaces a ɛyɛ den mu, a ɛwɔ contrast vials a ɛkorɔn a ɛma wotumi hu no pefee wɔ hann a ɛba fam mu. Nsusuwii ano a ɛwɔ afã anan no dannan ne ho ma ɛyɛ dade, nnua, anaa kɔnkrit, na ɛma wotumi yɛ nneɛma pii a enni mu.

4. Quality & Value a wɔaka abom .

Storaen level frames pricing no ma mfiridwuma-grade nnwinnade a ɛkɔ 30% a ɛba fam sen akansifo, esiane yɛn direct-to-user model nti. Nneɛma a wɔkra wɔ nneɛma pii ne amanne kwan so a wɔpaw no ma wonya sika foforo a wɔde sie, a wɔmfa ISO 9001 a wɔagye atom sɛ ɛyɛ papa anaasɛ nhwehwɛmu a emu yɛ den a ɛwɔ nsɛntitiriw 12 no mmɔ afɔre.

5. Mfeɛ 30+ a wɔde ayɛ adwuma yie .

Mfe du du pii a wɔde ayɛ mfiridwuma mu nneɛma foforo no ma biribiara kɔ so yiye—efi asase ani a wɔde twetwe no so kosi sɛnea ɛyɛ pɛpɛɛpɛ so kosi ɔhyew a ɛyɛ hyew so ma ɛyɛ nea ɛyɛ den. Wɔkyekye precision frame spirit level biara ma ɛtra hɔ, hwɛ hu sɛ ahotoso wɔ mmeae a ɛyɛ den sen biara mpo.

Paw Storaen ma precision frame levels a ɛde pɛpɛɛpɛyɛ, ɛtra hɔ kyɛ, na ɛyɛ nea ne bo yɛ den. Ma w’adwumayɛ nkɔ soro nnɛ denam adwinnade bi a wɔayɛ ama adwumayɛfo a wɔpow sɛ wɔbɛma wɔn ho atɔ wɔn so.
