Wɔde "jinan qing" abɔde mu granite nneɛma a ɛte sɛ V-shaped granite no nam mfiri a wɔde yɛ adwuma ne nsa a wɔde yɛ ade pɛpɛɛpɛ so na ɛyɛ. Black luster, uniform structural texture, stability pa, ahoɔden a ɛkorɔn, hardness a ɛkorɔn, granite V-shaped frame a ɛwɔ mfaso te sɛ pɛpɛɛpɛ a ɛkorɔn, rust biara nni hɔ, acid ne alkali resistance, magnetization, deformation biara nni hɔ, ne ɔbrɛ a ɛyɛ papa a ɛko tia. Ɛfata ma nhwehwɛmu, susudua, agyiraehyɛde, ne gyinabea adwuma wɔ mfiridwuma mu nneɛma a wɔyɛ ne nneɛma a wɔyɛ mu.

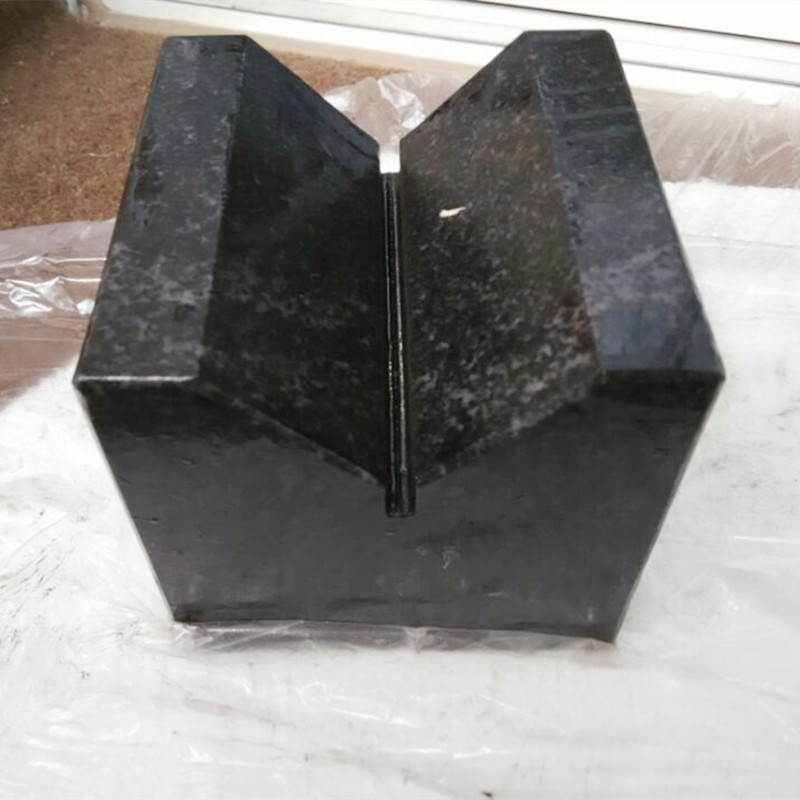

Granite susuw adwinnade v nsusuwii tuntum block .

Granite V-frame a ɛyɛ pɛpɛɛpɛ: level 000-1.

Granite V blocks (V frame) dwumadie: Shaft a ɛne ne ho hyia wɔ mfiridwuma mu .

Wɔ mfiri a wɔde yɛ adwuma mu no, shaft a ɛne ne ho hyia pɛpɛɛpɛ no ho hia kɛse na ama atumi ate ase, atew nneɛma a ɛho asɛe so, na ama mfiri a ɛkyinkyini no ayɛ adwuma yiye. Storaen granite v blocks (V frames) de ano aduru a ɛyɛ den, a ɛyɛ pɛpɛɛpɛ ma saa asɛnnennen yi, de Jinan Qing Granite abɔde mu nneɛma di dwuma de ma pɛpɛɛpɛ a ɛso bi nni wɔ shaft alignment nnwuma mu wɔ nnwuma ahorow nyinaa mu —efi kar a wɔyɛ so kosi ahunmu mfiridwuma so.

1. Fapem a ɛwɔ shaft a ɛne ne ho hyia: Nea enti a Granite V-Frames Excel .

Storaen granite V blocks no ma mfaso titiriw abiɛsa ma shaft alignment .:

Dimensional stability: Jinan qing granite (ɛyɛ den ≥70hs) hoahoa ne ho sɛ ɛyɛ ɔhyew ntrɛwmu ho nsusuwii a ɛba fam (8.3×10⁶/°C), a ɛma ɛne ne ho hyia pɛpɛɛpɛ wɔ ɔhyew a ɛsakra no nyinaa mu (10°C–40°C). Nea ɛnte sɛ dade V-blocks a ɛtrɛw/ɛma ɛyɛ apam a wontumi nhu no, yɛn granite frame ahorow no ma shafts no hyia wɔ ±5μm/m mu, mpo wɔ adwumayɛbea ahorow a ɛnyɛ hyew mu.
Vibration Damping: Ɔbo no granular structure no twetwe wosow 60% sen dade, a ɛho hia kɛse ma alignment a ɛkɔ so bere a wɔde ahoɔhare kɛse yɛ adwuma no. A 160×160×90mm granite V frame gyina 50kg shafts a ɛkyinkyini wɔ 3000 rpm, ɛtew adwinnade chatter ne soro roughness (ra ≤0.8μm).
Porrosion resistance: Sɛnea ɛte no, storaen granite V blocks ntumi nsiw rust ano —a eye ma mfiri a ano yɛ den a wɔde mfiri a wɔde si ananmu no sɛe a ɛyɛ den sɛ wobesiw rust ano, na ɛyɛ nea wontumi nsiw ano wɔ hɔ.

2. Precision grades ma alignment ahiade biara .

Paw pɛpɛɛpɛyɛ level a ɛfata ma wo application .:

Grade 000 (±2μm flatness):Wɔde di dwuma wɔ aerospace component manufacturing mu, 100×100×63mm granite V frame a ɛne titanium alloy shafts hyia ASME B89.3.2 gyinapɛn ahorow, hwɛ hu sɛ concentricity wɔ 5μm mu ma jet engine rotors—a ɛho hia ma aerodynamic drag a wɔtew so.
Grade 0 (±5μm flatness):Perfect ma automotive powertrain nhyiam, a 200×200×125mm frame gyinabea dade crankshafts a ±0.01mm/m parallelism, a ɛtew bearing wear so 30% wɔ high-horsepower engine ahorow.
Grade 1 (±10μm flatness):Suits General Industrial nnwuma te sɛ conveyor roller alignment, baabi a 300×300×150mm granite V block hwɛ hu sɛ 90° shaft perpencularity to mfiri mpa, yi belt slippage fi mu wɔ packaging lines mu.

3. Nneɛma titiriw a wɔde di dwuma wɔ mfiridwuma mu .

CNC Machine Setup:A Storaen Granite V frame (Grade 000, 63×63×90mm) hwɛ sɛ CNC lathe spindle shafts no teɛ bere a wɔde rehyɛ mu no, hwɛ hu sɛ adwinnade akwan no bɛkɔ so atra ±0.005mm mu ama precision machining a ɛfa aduruyɛ mfiri no afã horow ho.
Gearbox Assembly:Wɔ nnwinnadeɛ a emu yɛ duru a wɔyɛ mu no, 160×160×90mm granite V block no ma okyinnsoromma gya a ɛwɔ soro no hyia wɔ 8μm mu, ɛtew dede a ɛfiri mu ba no so na ɛma gear nkwa nna kɔ soro 25% wɔ adansi mfiri mu.
Aerospace Engine Testing:Yɛn corrosion-resistant frames boa inconel shafts bere a ɔbrɛ sɔhwɛ, kɔ so hyia denam 10,000+ adesoa kyinhyia a enni dimensional drift —a ɛyɛ den ma validating engine adwumayɛ wɔ tebea horow a emu yɛ den mu.

4. Storaen bo a wasi sɛ ɔbɛyɛ alignment excellence .

Certified Precision: Wɔde laser interferometer na ɛyɛ granite V block biara ho nhwehwɛmu, a ɛwɔ adansedie a wɔtumi hwehwɛ mu kɔ GB/T 20428-2006 ne ISO 1101 gyinapɛn so, na ɛhwɛ ma wɔdi nhwehwɛmu a ɛyɛ den a ɛfa su pa ho no so.
Ano aduru a wɔahyɛ da ayɛ: Wohia 500×500×200mm frame a ɛwɔ ntokuru a wɔde ahyɛ mu a wɔde ahyɛ mu ama nhama a wɔde yɛ adwuma a ɛnyɛ adwuma? Yɛn OEM kuw no de bespoke designs ma wɔ adapɛn 4–6 mu, a wɔayɛ no yiye ama wo shaft alignment ahiade soronko no.
Nkwa tenten ho bɔhyɛ: Mfe 2 warranty a ɛne nsakrae a ɛba asase ani anaa ne kɛseyɛ so gyina akyi no, yɛn granite V frames no sen dade a wɔde si ananmu no denam 5x so, na ɛma ɛka a wɔbɔ nyinaa yɛ $1,500+ wɔ adwinnade biara mu wɔ ne nkwa nna mu.

Nnyaw shaft alignment no nkɔ akwanhyia mu —gye Storaen granite v blocks no di na ama woatumi de ahoɔden, pɛpɛɛpɛyɛ, ne sɛnea ɛyɛ den a nnɛyi mfiri a wɔde yɛ nneɛma hwehwɛ no bɛma. Sɛ́ ebia CNC mfiri ahorow a wɔde yɛ nneɛma, gearbox ahorow a wɔboaboa ano, anaasɛ wimhyɛn engine ahorow a wɔsɔ hwɛ no, yɛn granite V frame ahorow no hwɛ hu sɛ shaft biara hyia pɛpɛɛpɛ, ɛtew bere a wɔde yɛ adwuma no so, ɛtew nneɛma a wɔsɛe no so, na ɛma wo nneɛma a woawie no yɛ papa. Hwehwɛ yɛn granite V frame ahorow no mu nnɛ na nya nsonsonoe a ɛwɔ ɔbo a wɔde yɛ nneɛma pɛpɛɛpɛ mu no mu osuahu.

Granite V blocks (V-Frame) Ɔhwɛ: Ahotew & Nneɛma a Wɔkora So Nneyɛe pa .

Nsiesiei a ɛfata yɛ ade titiriw a ɛbɛma wo granite V blocks (V-frames) no ayɛ pɛpɛɛpɛ na atra hɔ akyɛ. Wɔayɛ Storaen granite v-frames a ɛyɛ fɛ a wɔde Jinan Qing granite ayɛ no ho nhyehyɛe a ɛho nhia pii —nanso sɛ wodi nneyɛe pa yi akyi a, ɛhwɛ ma ɛkɔ so yɛ pɛpɛɛpɛ na biribiara nsɛe mfe du du pii, wɔ mfiridwuma mu mmeae a emu yɛ den mpo.

1. Da biara da ahotew: Yi efĩ fi hɔ brɛoo .

Granite no ani a ɛnyɛ porous no gyina efĩ dodow no ara ano, nanso sɛ wosiesie hɔ daa a, ɛmma nkae a ebetumi aka sɛnea ɛne ne ho hyia no mma .:
Nnwinnade a ehia: Microfiber ntama a ɛyɛ mmerɛw, pH-neutral cleaner (sɛ nhwɛso no, Storaen’s granite care solution), ne rɔba a wɔde hyɛ mu ma nneɛma a asɛe a ɛyɛ den.

anammɔn anammɔn .:

Fa ntama a ɛyɛ nwunu popa V-frame no ani na yi mfutuma a ayɛ mmerɛw anaa dade a wɔde ayɛ no —a ɛyɛ nea ɛho hia kɛse ma ±2μm a ɛyɛ tratraa a ɛwɔ granite V blocks a ɛyɛ grade 000 no mu.
Fa nsu a wɔahoro (1:10 na fa nsu a wɔayam) gu ntama a ɛyɛ nwini mu, na fa ngo anaa nsu a ɛma onwini hohoro mu brɛoo. Mfa acid/alkaline solvents nni dwuma da—wobetumi de etch granite no ani bere kɔ so.
Fa ntama a nwi nni mu no hohoro yiye, na hwɛ hu sɛ nsu biara renka V-groove no mu baabi a nnua no di nkitaho no.

Pro Tip: Wɔ mfiri a emu yɛ duru a ɛwɔ hɔ no ho no, hohoro akyi wɔ shift biara akyi na amma abrasive particles (sɛ nhwɛso no, aluminum oxide) ansɛe 320-grit asase no ani (RA ≤0.8μm).

2. Nneɛma a wɔde sie: Bɔ ho ban fi nkɛntɛnso & ɔhyew nsakrae ho .

Fa wo granite v blocks no sie na ama dimensional stability akɔ so na abɔ V-groove edges no ho ban .:

Bere tiaa mu ade a wɔkora so (≤Adapɛn 1 .):

Fa gu rubber mat a ɛyɛ wosow so (5mm thickness) wɔ adwumayɛbea benkyi a ɛho tew so, hwɛ hu sɛ 100mm clearance fi nnwinnade afoforo mu. Storaen’s 160×160×90mm V-Frames, a ne mu duru yɛ 18kg no, tra hɔ yiye bere a wɔreyɛ afiri a wɔde yɛ nneɛma a ɛbɛn hɔ no mpo.

Nneɛma a wɔde sie bere tenten (≥ ɔsram 1 .):

Fa tissue krataa anaa anti-static bubble wrap a acid nnim kyekyere ho ma ɛnyɛ nsuo a ɛyɛ nwini (HR RH a ɛyɛ papa: 40%–60%).
Fa sie tẽẽ wɔ flat shelf a foam supports wɔ V-groove ne base ase, kyekyɛ mu duru pɛpɛɛpɛ na asiw 0.05mm/m SAG a ebetumi aba wɔ unsupported frames mu no ano.
Hwɛ sɛnea wɔkora nneɛma so wɔ 20°C ±2°C—Jinan Qing Granite ɔhyew ntrɛwmu a ɛba fam (8.3×10⁶/°C) kyerɛ sɛ asiane kakraa bi na ɛwɔ hɔ sɛ ɛbɛkyinkyin, nanso nsakrae a ɛtra so betumi aka calibration a ɛne ne ho hyia.

Kwati: Nneɛma a wɔde sie anaasɛ ɛda hɔ gyina hɔ, a ebetumi asi V-groove anoano so dua—storaen no yɛ granite V blocks nyinaa ma ɛkɔ soro, a ɛwɔ nnyinaso a wɔahyɛ no den a ɛbɛma wɔde shelf no asi hɔ yiye.

3. Nsiesiei yɛ & don’ts .

Yɛ:

Hwɛ quarterly sɛ ebia chips nketewa (≤0.5mm) denam 10x magnifier so—Storaen de on-site resurfacing ma ma frame ahorow a asɛe, san yɛ flatness to original grades.
Fa Storaen’s Certified Calibration Service di dwuma afe biara de hwɛ sɛ GB/T 20428-2006 di so, hwɛ hu sɛ wo Granite V blocks no hwɛ wɔn pɛpɛɛpɛyɛ a wɔasɔ ahwɛ wɔ adwumayɛbea hɔ no so.

N:

Drop anaa strike V-Frame — mpo 1kg impact betumi atwitwa V-Groove Edge no, aka shaft alignment no bɛyɛ 15μm.
Store ne magnetic nnwinnade —Granite’s non-magnetic su (≤3μt) yɛ nea eye ma magnetic field mmeae, nanso magnet a ɛbɛn hɔ betumi atwetwe nneɛma a asɛe a ɛtwetwe asase ani.

4. Storaen a ɔhwɛ nneɛma a wɔayɛ no yiye so .

Yɛn granite v blocks no yɛ nea wɔayɛ no sɛnea ɛbɛyɛ a ɛbɛyɛ mmerɛw sɛ wobesiesie .:

Ntwea a ɛyɛ kurukuruwa: 3mm chamfers a ɛwɔ ntwea nyinaa so no ma chip ho asiane so tew bere a wɔredi ho dwuma no, asɛm a ɛtaa ba wɔ akwan foforo a ɛyɛ nnam ho.
Anti-static coating (optional): Sɛ wopɛ sɛ wonya ɛlɛtrɔnik nneɛma a, paw V-frame ahorow a ɛwɔ 5μm conductive coating a ɛpam mfutuma nketenkete, a ɛho hia ma shaft a ɛne ne ho hyia pɛpɛɛpɛ wɔ mmeae a ɛhɔ tew.
Custom storage cases: Kɔkra foam-lined hardwood case (a ɛwɔ hɔ ma ne kɛseɛ nyinaa) a CNC-cut inserts a ɛwɔ V-Groove ne Base no cradle, bɔ wo sika a wode bɛto mu no ho ban bere a wode kar rekɔ mmeaeɛ ntam no.

Wo Storaen Granite V blocks a wobɛhwɛ so no yɛ mmerɛw wɔ saa nneyɛe yi mu —ɛho tew brɛoo, sie nyansam, na yɛde yɛn nhyehyɛe a ɛma yɛyɛ nsiesie no di dwuma. Ɛdenam wɔn abɔde mu pintinnyɛ ne pɛpɛɛpɛyɛ ho banbɔ so no, wohwɛ hu sɛ shaft alignment adwuma biara du mfiridwuma gyinapɛn a ɛkorɔn sen biara ho, efi kar nhyiam so kosi ahunmu metrology so. Ahotoso a ɛwɔ Storaen mfiridwuma mu sɛ ɛde v-frame ahorow a egyina bere sɔhwɛ mu bɛma —efisɛ ɛnsɛ sɛ ɔhwɛ a ɛfata yɛ nea ɛyɛ den bere a wontumi nsusuw ho pɛpɛɛpɛ no.
